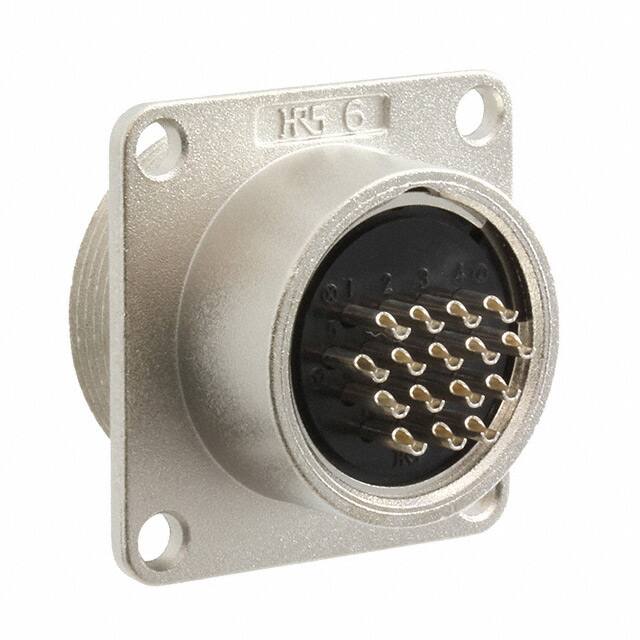

JR21RK-16S

Teknik Özellikler

HTS Kodu

8536.69.40.20

Din Conformance

NO

Contact Finish Mating

Silver

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Flanges, Panel

Mixed Contacts

NO

Contact Resistance

5mOhm

Shell Material

Aluminum Alloy

Cable Opening

0.941 (23.90mm)

Shell Size Insert

21

Insert Material

Phenol Formaldehyde (PF)

Material Flammability Rating

UL94 V-0

Seri

JR

Option

GENERAL PURPOSE

Contact Gender

Female

Mating Information

MULTIPLE MATING PARTS AVAILABLE

REACH Uyumluluk Kodu

unknown

Backshell Type

SOLID

RoHS Durumu

RoHS Compliant

Body Depth

1.063 inch

Gender

Receptacle

JESD-609 Kodu

e4

Çalışma Sıcaklığı

-25°C~85°C

Body Material

Aluminium

Mounting Feature

Flange

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

8 Weeks

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Iec Conformance

NO

Total Number Of Contacts

16

Orientation

Keyed

Empty Shell

NO

Akım Değeri

5A

Fastening Type

Threaded

Contact Materials

Copper Alloy

Durability

500 Cycles

Nominal Gerilim

250VAC 350VDC

Additional Feature

SOLDERING TYPE

Shell Finish

Nickel
