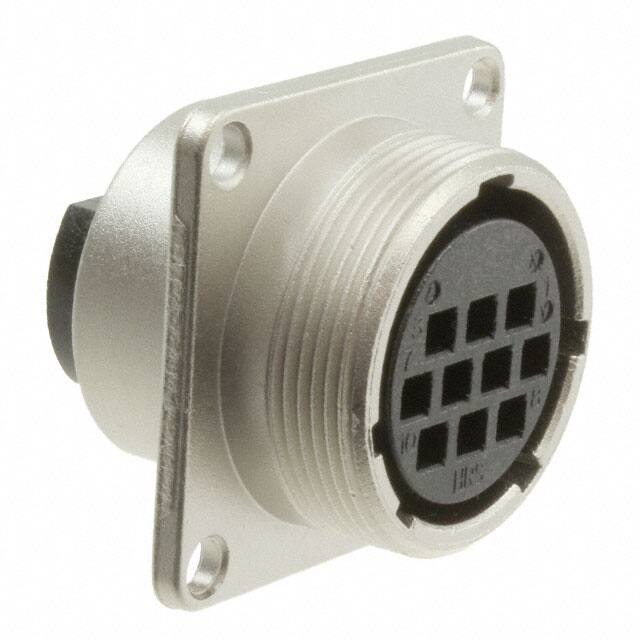

JR21RK-10SC

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Contact Materials

COPPER ALLOY

Insert Material

Polycarbonate (PC)

Fastening Type

Threaded

Shell Size Insert

21

Tip

For Female Sockets

Total Number Of Contacts

10

Contact Shape

Circular

Shell Material

Aluminum Alloy

Empty Shell

NO

Contact Type

Crimp

Orientation

Keyed

Montaj

Flanges, Panel

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

5mOhm

Iec Conformance

NO

Body Length Or Diameter

1.26 inch

Din Conformance

NO

Fabrika Tedarik Süresi

8 Weeks

Reliability

COMMERCIAL

Body Breadth

1.26 inch

Kurşunsuz Kodu

yes

Mounting Feature

Flange

Yayın Yılı

2012

Contact Sizes

1.6mm

Body Depth

1.087 inch

Number Of Ports

1

Housing Color

Silver

Çalışma Sıcaklığı

-25°C~85°C

JESD-609 Kodu

e4

Pozisyon Sayısı

10

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Note

Contacts Not Included

RoHS Durumu

RoHS Compliant

Filter Feature

NO

Mil Conformance

NO

Parça Durumu

Active

Ambalaj

Bulk

Shielding

Unshielded
