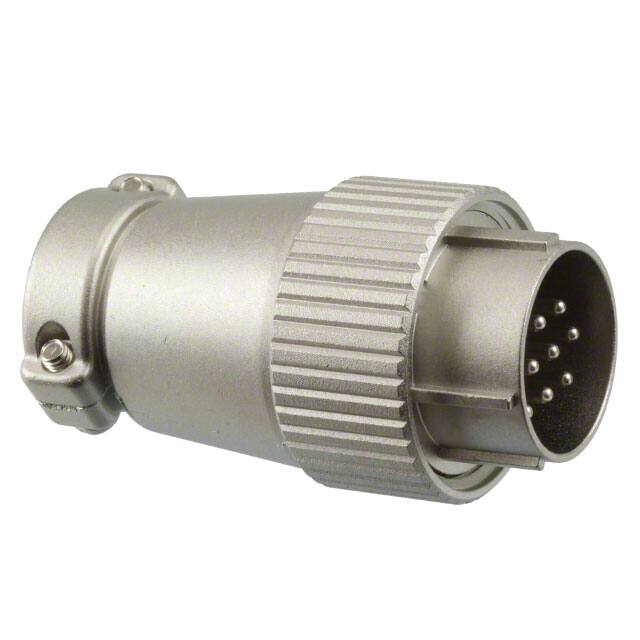

JR21PK-10P(71)

Teknik Özellikler

Contact Resistance

5mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Free Hanging, Panel

Contact Finish Mating

Silver

Reliability

COMMERCIAL

Din Conformance

YES

Fabrika Tedarik Süresi

8 Weeks

Durability

500 Cycles

Nominal Gerilim

250VAC 350VDC

Shell Size Insert

21

Fastening Type

Threaded

Insert Material

Phenol Formaldehyde (PF)

Material Flammability Rating

UL94 V-0

Contact Materials

Copper Alloy

Akım Değeri

10A

Orientation

Keyed

Cable Opening

0.591 (15.00mm)

Shell Material

Aluminum Alloy

Total Number Of Contacts

10

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

118.1μin 3.00μm

REACH Uyumluluk Kodu

unknown

Montaj Tipi

Free Hanging (In-Line)

Özellikler

Backshell, Cable Clamp, Coupling Nut

Polarization Key

POLARIZED HOUSING

Parça Durumu

Active

Ambalaj

Bulk

Contact Style

RND PIN-SKT

Shielding

Unshielded

Shell Finish

Nickel

Connector Type

Plug, Male Pins

Seri

JR

Contact Gender

Male

Yayın Yılı

2014

Kurşunsuz

Lead Free

Terminal

Solder Cup

Backshell Material Plating

Aluminum Alloy, Nickel

Pozisyon Sayısı

10

Çalışma Sıcaklığı

-25°C~85°C

Number Of Ports

1
