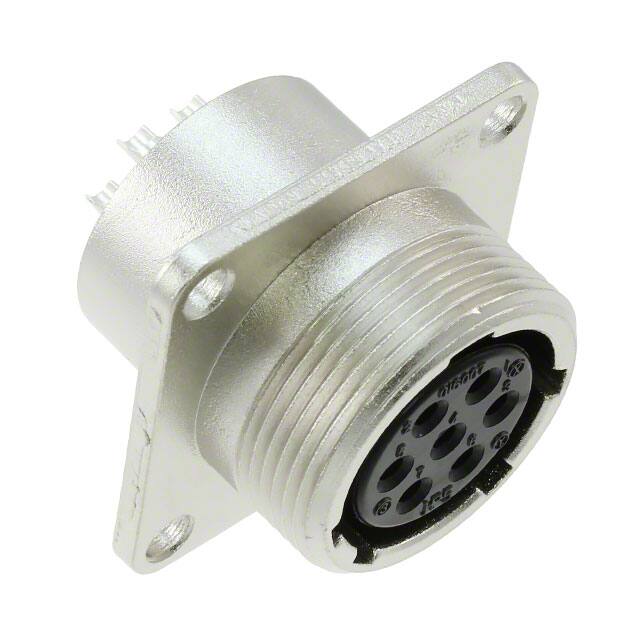

JR16RK-7S

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Flanges, Panel

Mixed Contacts

NO

Contact Resistance

5mOhm

Din Conformance

NO

HTS Kodu

8536.69.40.20

Contact Finish Mating

Silver

Shell Size Insert

16

Insert Material

Phenol Formaldehyde (PF)

Material Flammability Rating

UL94 V-0

Cable Opening

0.783 (19.90mm)

Shell Material

Aluminum Alloy

Backshell Type

SOLID

RoHS Durumu

RoHS Compliant

Seri

JR

Option

GENERAL PURPOSE

Contact Gender

Female

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Body Material

Aluminium

Mounting Feature

Flange

Radyasyon Dayanımı

No

Body Depth

1.102 inch

Gender

Receptacle

JESD-609 Kodu

e4

Çalışma Sıcaklığı

-25°C~85°C

Iec Conformance

NO

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Fastening Type

Threaded

Contact Materials

Copper Alloy

Nominal Gerilim

250VAC 350VDC

Durability

500 Cycles

Additional Feature

SOLDERING TYPE

Total Number Of Contacts

7

Orientation

Keyed

Empty Shell

NO

Akım Değeri

10A

Reference Standard

UL
