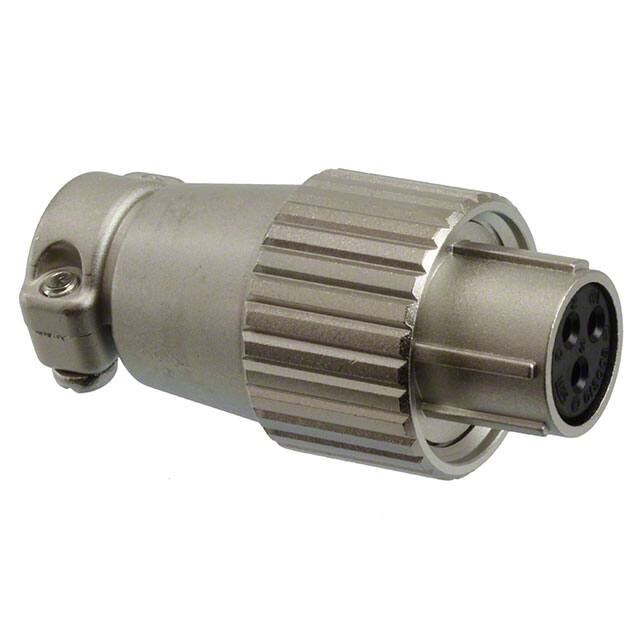

JR13PK-3S(71)

Teknik Özellikler

Seri

JR

Fabrika Tedarik Süresi

8 Weeks

Shell Size Insert

13

Contact Finish Mating

Silver

Total Number Of Contacts

3

Reliability

COMMERCIAL

Din Conformance

YES

Akım Değeri

10A

Connector Type

Plug, Female Sockets

Shielding

Unshielded

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Montaj Tipi

Free Hanging (In-Line)

Shell Finish

Nickel

Insulation Resistance

1000000000Ohm

Ambalaj

Bulk

Terminal

Solder Cup

Nominal Gerilim

250VAC 350VDC

ECCN Kodu

EAR99

Contact Style

RND PIN-SKT

Voltage Rated Ac

250V

Pozisyon Sayısı

3

Contact Resistance

5mOhm

Contact Gender

Female

RoHS Durumu

RoHS Compliant

Özellikler

Backshell, Cable Clamp, Coupling Nut

Fastening Type

Threaded

Orientation

Keyed

Number Of Ports

1

Montaj

Free Hanging

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Yayın Yılı

2014

Body Depth

1.791 inch

Contact Materials

Copper Alloy

Dielectric Withstanding Voltage

1000VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

78.7μin 2.00μm

Polarization Key

POLARIZED HOUSING

Durability

500 Cycles
