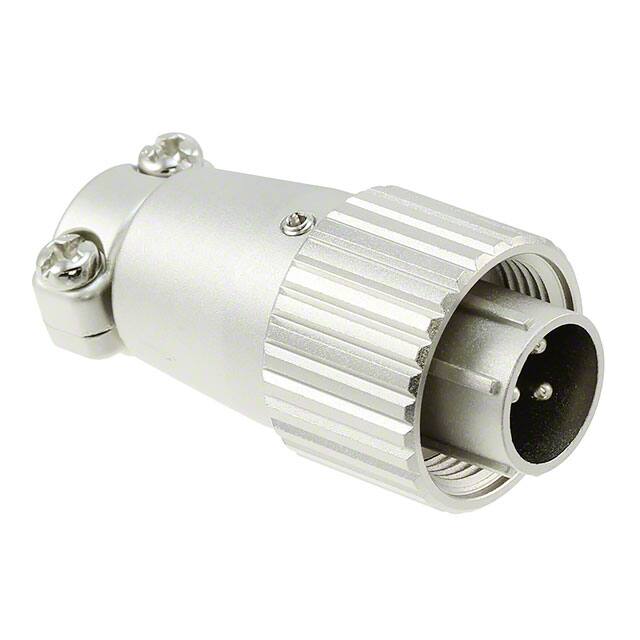

JR13PK-3P(71)

Teknik Özellikler

Insulation Resistance

1000000000Ohm

Shell Finish

Nickel

Reach Svhc

No SVHC

Terminal

Solder Cup

Nominal Gerilim

250VAC 350VDC

Ambalaj

Bulk

Connector Type

Plug, Male Pins

Shielding

Unshielded

Akım Değeri

10A

Montaj Tipi

Free Hanging (In-Line)

Parça Durumu

Active

Din Conformance

YES

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

Seri

JR

Total Number Of Contacts

3

Fabrika Tedarik Süresi

8 Weeks

Contact Finish Mating

Silver

Shell Size Insert

13

Backshell Material Plating

Aluminum Alloy, Nickel

Body Material

Aluminium

Insert Material

Phenol Formaldehyde (PF)

Durability

500 Cycles

Polarization Key

POLARIZED HOUSING

Dielectric Withstanding Voltage

1000VAC V

Contact Materials

Copper Alloy

Body Depth

1.791 inch

Contact Finish Thickness Mating

118.1μin 3.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Shell Material

Aluminum Alloy

Cable Opening

0.335 (8.50mm)

Fastening Type

Threaded

Orientation

Keyed

Number Of Ports

1

Yayın Yılı

2009

Çalışma Sıcaklığı

-25°C~85°C

Montaj

Cable, Free Hanging

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Contact Style

RND PIN-SKT
