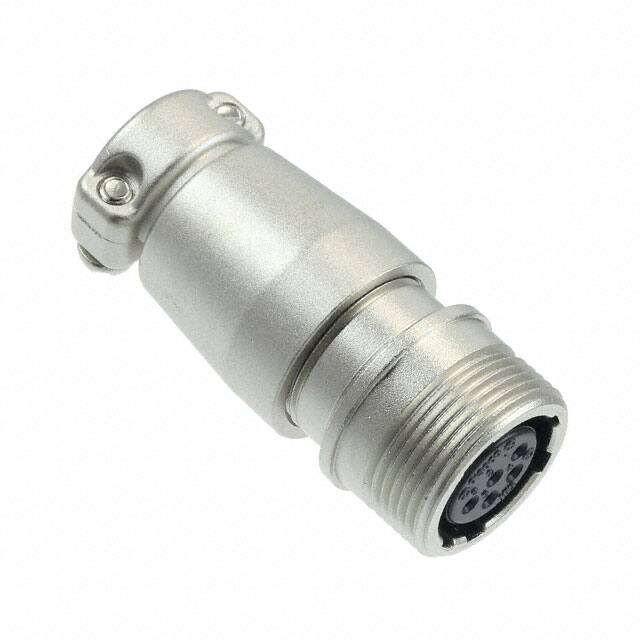

JR13JK-5S

Teknik Özellikler

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Cable Opening

0.335 (8.50mm)

Mixed Contacts

NO

Backshell Material Plating

Aluminum Alloy, Nickel

ECCN Kodu

EAR99

Contact Style

RND PIN-SKT

Pozisyon Sayısı

5

Filter Feature

NO

Fastening Type

Threaded

Number Of Ports

1

Montaj

Free Hanging

Yayın Yılı

2014

Akım Değeri

5A

REACH Uyumluluk Kodu

unknown

Empty Shell

NO

Insulation Resistance

1000000000Ohm

Ambalaj

Bulk

Mil Conformance

NO

Terminal

Solder Cup

Option

GENERAL PURPOSE

Contact Finish Mating

Silver

Reliability

COMMERCIAL

Rated Current Signal

5A

Dielectric Withstanding Voltage

1000VAC V

Backshell Type

SOLID

Shell Material

Aluminum Alloy

Bodyshell Style

RECEPTACLE

Insert Material

Phenol Formaldehyde (PF)

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

Özellikler

Backshell, Cable Clamp

Orientation

Keyed

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Jack, Female Sockets

Shielding

Unshielded

Parça Durumu

Active
