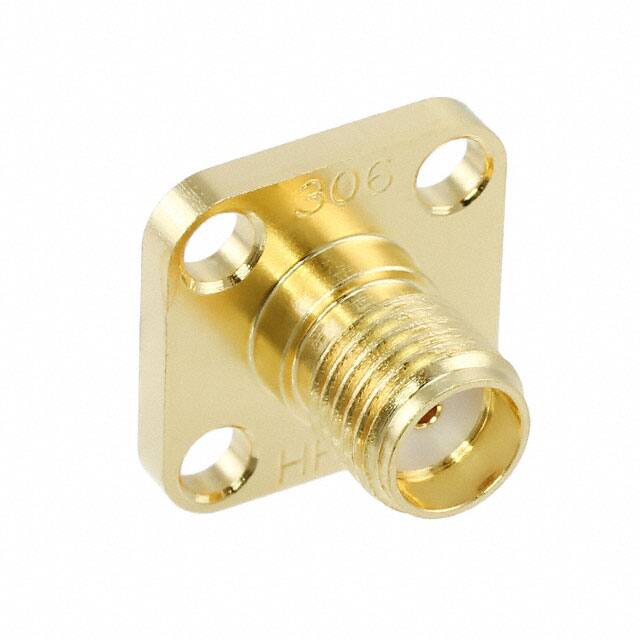

HRM-306(09)

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Dielectric Material

Polytetrafluoroethylene (PTFE)

Parça Durumu

Active

Body Depth

0.309 inch

Connector Style

SMA

Empedans

50Ohm

Total Number Of Contacts

1

Body Material

Stainless Steel

Insulation Resistance

500000000Ohm

Reliability

COMMERCIAL

Connector Type

Receptacle, Female Socket

Mil Conformance

YES

Özellikler

Extended Insulation

Contact Materials

Copper

Iec Conformance

NO

Insertion Loss

0.1dB

Filter Feature

NO

Center Contact Material

Beryllium Copper

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Mounting Feature

Flange

Frequencymax

12.4GHz

Mating Cycles

1000

Insulation Materials

TETRAFLUORIDE

Seri

HRM

Option

GENERAL PURPOSE

Center Contact Plating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Style

COAX

Din Conformance

NO

Ambalaj

Bulk

Contact Resistance

4mOhm

Çalışma Sıcaklığı

-55°C~85°C

Kurşunsuz Kodu

yes

Fastening Type

Threaded

Number Of Ports

1

Yayın Yılı

2009

Contact Termination

Solder

Length Termination

0.079 inch

Montaj Tipi

Panel Mount
