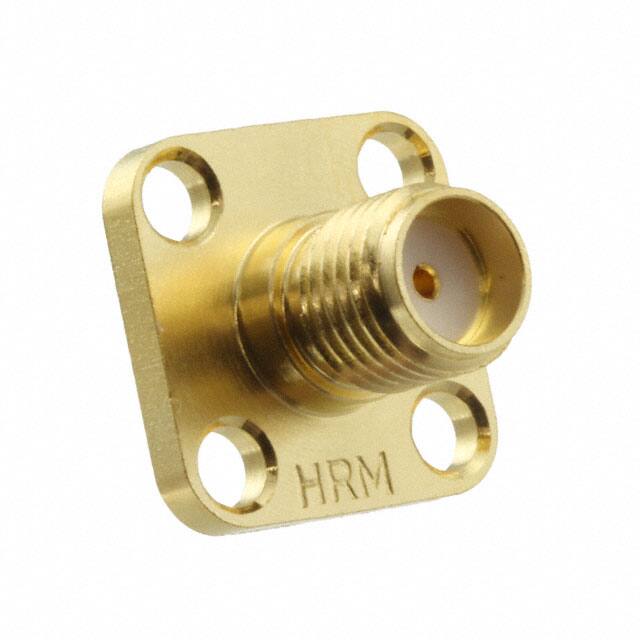

HRM-301(09)

Teknik Özellikler

Empedans

50Ohm

Total Number Of Contacts

1

RoHS Durumu

RoHS Compliant

Connector Style

SMA

Parça Durumu

Active

Dielectric Material

Polytetrafluoroethylene (PTFE)

Insertion Loss

0.1dB

Depth

12.7mm

Iec Conformance

NO

Body Material

Stainless Steel

Contact Materials

Copper

Reliability

COMMERCIAL

Insulation Resistance

500000000Ohm

Mil Conformance

YES

Connector Type

Receptacle, Female Socket

Frequencymax

12.4GHz

Mating Cycles

1000

Mounting Feature

Flange

Radyasyon Dayanımı

No

Center Contact Plating

Gold

Option

GENERAL PURPOSE

Seri

HRM

Insulation Materials

TETRAFLUORIDE

Center Contact Material

Beryllium Copper

ECCN Kodu

EAR99

Filter Feature

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Termination

Solder

Yayın Yılı

2009

Uzunluk

15.55mm

Montaj

Flanges, Panel

Montaj Tipi

Panel Mount

Ambalaj

Bulk

Contact Resistance

4mOhm

Din Conformance

NO

Contact Style

COAX

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Ports

1

Kurşunsuz Kodu

yes

Fastening Type

Threaded
