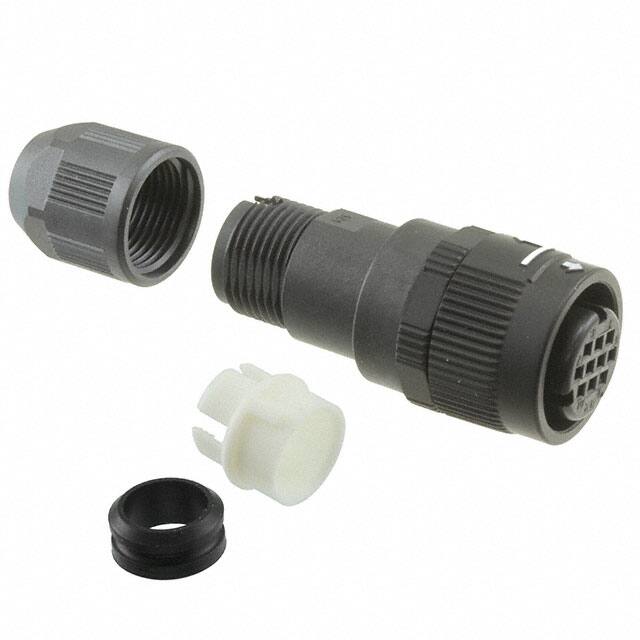

HR34B-12WPD-10SC

Teknik Özellikler

Nominal Gerilim

250V

Çalışma Sıcaklığı

-25°C~125°C

Parça Durumu

Active

Ambalaj

Bag

Yayın Yılı

2005

Tip

For Female Sockets

Akım Değeri

3A

Shielding

Unshielded

RoHS Durumu

RoHS Compliant

Contact Plating

Gold

Housing Material

Aluminium

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Plating

Chromate

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Material Flammability Rating

UL94 V-0

Montaj Tipi

Free Hanging (In-Line)

Pozisyon Sayısı

10

Contact Shape

Circular

Flammability Rating

UL94 V-0

Filter Feature

NO

ECCN Kodu

EAR99

Seri

HR34B

Shell Size Insert

12

Contact Gender

Female

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Housing Color

Black

Fastening Type

Bayonet Lock

Shell Material

Zinc Alloy

Empty Shell

NO

JESD-609 Kodu

e3

Contact Finish Mating

TIN

Contact Materials

Bronze

Özellikler

Backshell, Coupling Nut, Strain Relief

Body Material

Polyphenylene

Contact Type

Crimp

Insert Material

Polyphenylene Sulfide (PPS)

Orientation

N (Normal)

Gender

Male

HTS Kodu

8536.69.40.20
