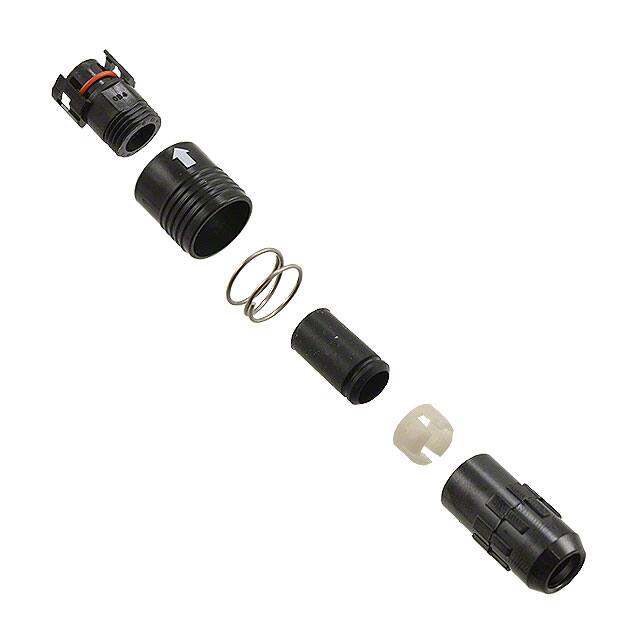

HR30-8P-12PC(71)

Teknik Özellikler

Reach Svhc

No SVHC

Mixed Contacts

NO

Ratings

Dust Tight, IP67, IP68, Waterproof

Connector Type

Plug Housing

Orientation

Keyed

Insert Material

Polyphenylene Sulfide (PPS)

Note

Contacts Not Included

Mil Conformance

NO

Total Number Of Contacts

12

Iec Conformance

NO

Fabrika Tedarik Süresi

12 Weeks

Montaj

Cable, Free Hanging

Kurşunsuz Kodu

yes

Özellikler

Backshell, Strain Relief

Contact Materials

Brass, Bronze

Empty Shell

YES

JESD-609 Kodu

e4

Shell Material

Polyphenylene Sulfide (PPS)

Contact Type

Crimp

Body Material

Polyphenylene

Contact Gender

Male

Shell Size Insert

8

Seri

HR30

Housing Color

Black

Fastening Type

Push-Pull

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Radyasyon Dayanımı

No

Pozisyon Sayısı

12

Filter Feature

NO

Flammability Rating

UL94 V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Includes

6 pcs - 2 pc Connector, 1 Backshell, 1 Bushing, 1 Cage Clamp, 1 Spring

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Shielding

Unshielded

Akım Değeri

2A

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Contact Plating

Gold
