HR30-7R-10PC(71)

Teknik Özellikler

Ambalaj

Tray

Insulation Materials

Plastic

Yayın Yılı

2004

Mounting Feature

Bulkhead - Rear Side Nut

Tip

For Male Pins

Nominal Gerilim

30V

Çalışma Sıcaklığı

-25°C~85°C

Parça Durumu

Obsolete

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Contact Plating

Gold

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Akım Değeri

2A

Shielding

Unshielded

Material Flammability Rating

UL94 V-0

Montaj Tipi

Panel Mount

Max Current Rating

2A

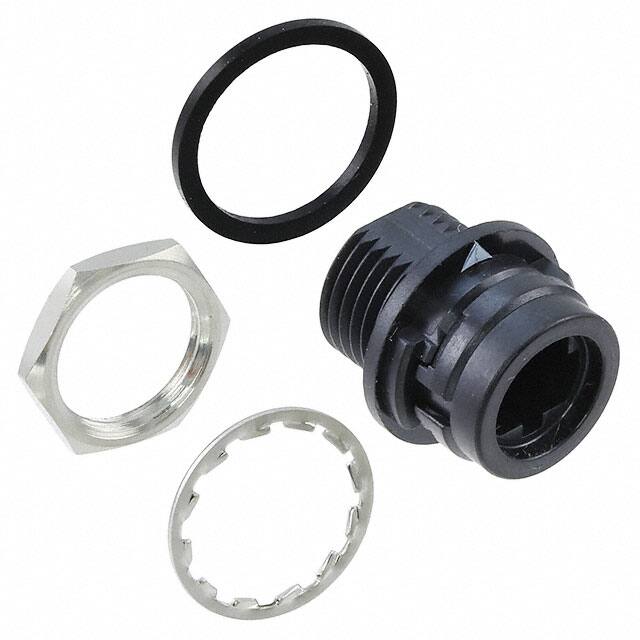

Includes

4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Flammability Rating

UL94 V-0

Filter Feature

NO

Pozisyon Sayısı

10

Radyasyon Dayanımı

No

Contact Shape

Square

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Housing Color

Black

Seri

HR30

Shell Size Insert

7

Contact Gender

Male

Body Material

Polyphenylene

Contact Type

Crimp

Shell Material

Polyphenylene Sulfide (PPS)

JESD-609 Kodu

e4

Empty Shell

YES

Contact Materials

Brass, Bronze

Kurşunsuz Kodu

yes

Montaj

Bulkhead, Panel, Rear Side Nut

Mil Conformance

NO
