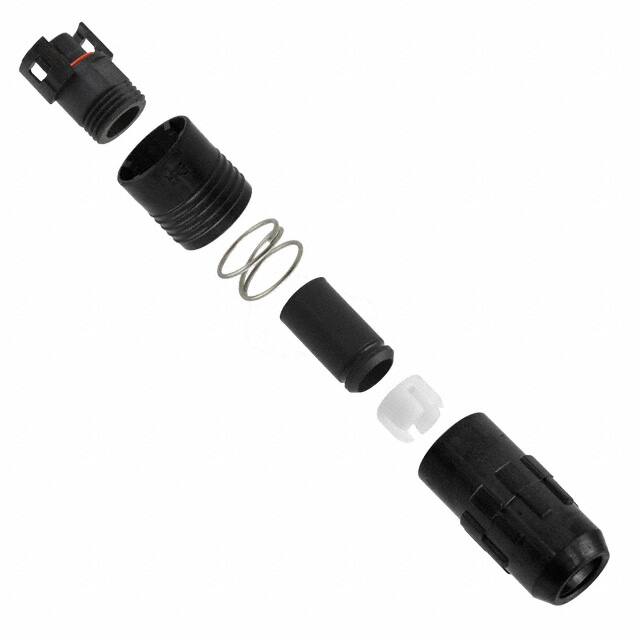

HR30-7P-10SC(71)

Teknik Özellikler

Parça Durumu

Active

Nominal Gerilim

30V

Çalışma Sıcaklığı

-25°C~85°C

Kurşunsuz

Lead Free

Insulation Materials

Plastic

Ambalaj

Tray

Tip

For Female Sockets

Yayın Yılı

2004

Akım Değeri

2A

Shielding

Unshielded

Contact Plating

Gold

RoHS Durumu

RoHS Compliant

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Includes

6 pcs - 2 pc Connector, 1 Backshell, 1 Bushing, 1 Cage Clamp, 1 Spring

Max Current Rating

2A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Pozisyon Sayısı

10

Contact Shape

Square

Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Filter Feature

NO

Shell Size Insert

7

Seri

HR30

Contact Gender

Female

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Housing Color

Black

JESD-609 Kodu

e4

Empty Shell

YES

Shell Material

Polyphenylene Sulfide (PPS)

Özellikler

Backshell, Strain Relief

Contact Materials

Brass, Bronze

Body Material

PBT, Polybutylene

Contact Type

Crimp

Insert Material

Polyphenylene Sulfide (PPS)

Uzunluk

39.8mm
