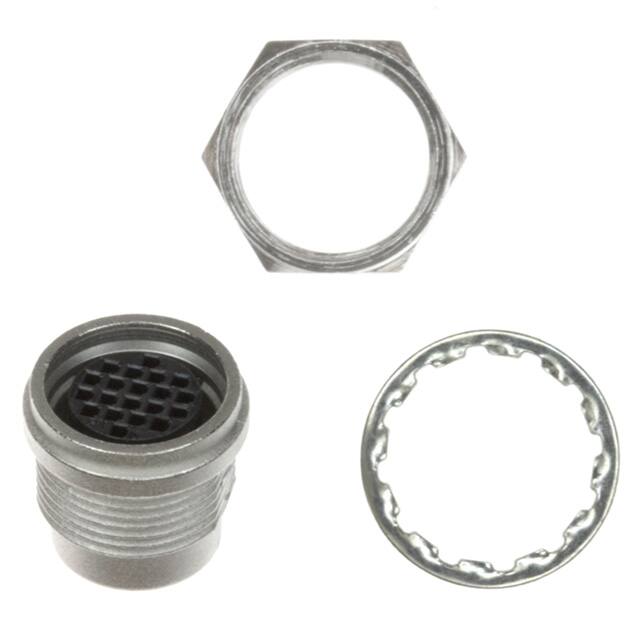

HR25A-9R-20SC

Teknik Özellikler

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

20

Mil Conformance

NO

Shell Finish

Nickel

Note

Contacts Not Included

Kurşunsuz Kodu

yes

Montaj

Bulkhead, Panel, Rear Side Nut

Material Flammability Rating

UL94 V-0

Montaj Tipi

Panel Mount

Orientation

Keyed

Connector Type

Receptacle Housing

Insert Material

Polyphenylene Sulfide (PPS)

REACH Uyumluluk Kodu

unknown

Voltage Rated Ac

30V

Additional Feature

COMPACTABLE CONTACT HR25-SC-111, HR25-SC-211

Filter Feature

NO

Voltage Rated Dc

42V

Mixed Contacts

NO

Option

GENERAL PURPOSE

Contact Shape

Circular

Pozisyon Sayısı

20

Yayın Yılı

2009

Tip

For Female Sockets

Housing Color

Silver

Fastening Type

Push-Pull

Mounting Feature

Bulkhead - Rear Side Nut

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Ambalaj

Bulk

Contact Gender

Female

Çalışma Sıcaklığı

-25°C~85°C

Seri

HR25A

Wirecable Gauge

30 AWG

Shell Size Insert

9

Parça Durumu

Active

Contact Type

Crimp

RoHS Durumu

RoHS Compliant

Contact Plating

Gold

Contact Materials

PHOSPHOR BRONZE
