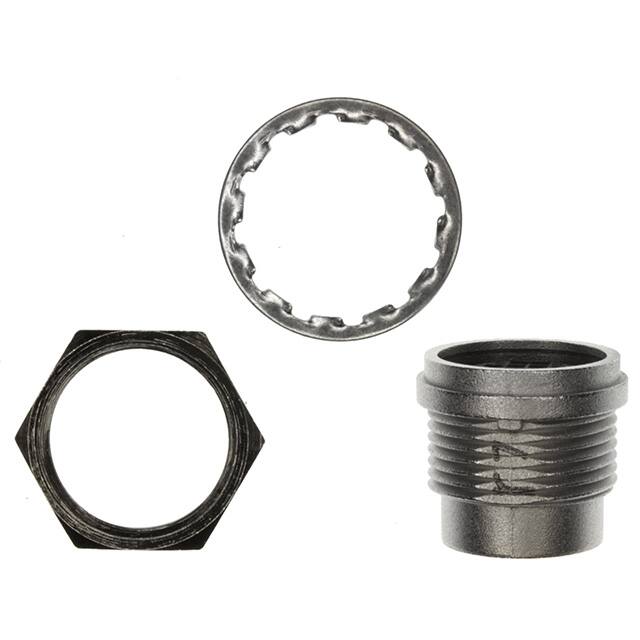

HR25A-9R-16SC

Teknik Özellikler

Empty Shell

YES

JESD-609 Kodu

e4

Akım Değeri

1A

Shell Material

Zinc Alloy

Shielding

Unshielded

Contact Materials

PHOSPHOR BRONZE

Contact Plating

Gold

RoHS Durumu

RoHS Compliant

Contact Type

Crimp

Shell Size Insert

9

Parça Durumu

Active

Wirecable Gauge

30 AWG

Seri

HR25A

Çalışma Sıcaklığı

-25°C~85°C

Contact Gender

Female

Din Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Feature

Bulkhead - Rear Side Nut

Tip

For Female Sockets

Housing Color

Silver

Fastening Type

Push-Pull

Yayın Yılı

2009

Pozisyon Sayısı

16

Contact Shape

Circular

Option

GENERAL PURPOSE

Mixed Contacts

NO

Filter Feature

NO

Voltage Rated Dc

42V

Additional Feature

COMPACTABLE CONTACT HR25-SC-111, HR25-SC-211

Voltage Rated Ac

30V

REACH Uyumluluk Kodu

unknown

Insert Material

Polyphenylene Sulfide (PPS)

Connector Type

Receptacle Housing

Orientation

Keyed

Montaj Tipi

Panel Mount

Material Flammability Rating

UL94 V-0

Montaj

Bulkhead, Panel, Rear Side Nut

Kurşunsuz Kodu

yes

Note

Contacts Not Included
