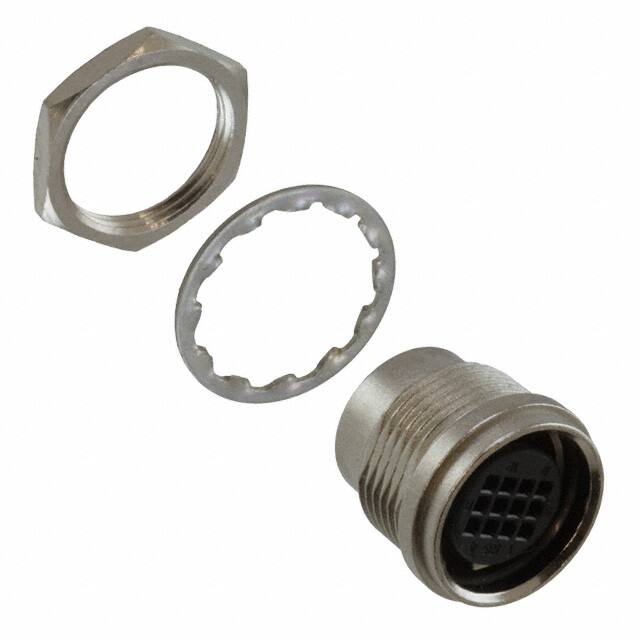

HR25A-9R-12SC

Teknik Özellikler

Mounting Feature

Bulkhead - Rear Side Nut

Tip

For Female Sockets

Housing Color

Silver

Fastening Type

Push-Pull

Yayın Yılı

2009

Din Conformance

NO

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Gender

Female

Shell Size Insert

9

Parça Durumu

Active

Wirecable Gauge

30 AWG

Seri

HR25A

Çalışma Sıcaklığı

-25°C~85°C

Contact Type

Crimp

Contact Plating

Gold

RoHS Durumu

RoHS Compliant

Shielding

Unshielded

Contact Materials

PHOSPHOR BRONZE

Empty Shell

YES

JESD-609 Kodu

e4

Akım Değeri

1A

Shell Material

Zinc Alloy

Mil Conformance

NO

Shell Finish

Nickel

Note

Contacts Not Included

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

12

Montaj Tipi

Panel Mount

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Montaj

Bulkhead, Panel, Rear Side Nut

Connector Type

Receptacle Housing

Orientation

Keyed

Additional Feature

COMPACTABLE CONTACT HR25-SC-111, HR25-SC-211

Voltage Rated Ac

30V

Insert Material

Polyphenylene Sulfide (PPS)

REACH Uyumluluk Kodu

unknown

Mixed Contacts

NO
