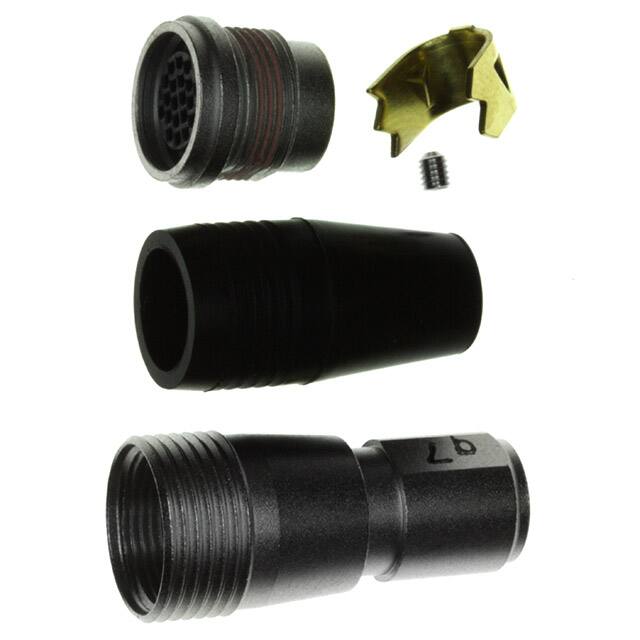

HR25A-9J-20SC

Teknik Özellikler

Ambalaj

Bulk

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Color

Silver

Fastening Type

Push-Pull

Tip

For Female Sockets

Yayın Yılı

2009

Parça Durumu

Active

Shell Size Insert

9

Wirecable Gauge

30 AWG

Seri

HR25A

Çalışma Sıcaklığı

-25°C~85°C

Contact Gender

Female

Contact Plating

Gold

RoHS Durumu

RoHS Compliant

Contact Type

Crimp

JESD-609 Kodu

e4

Empty Shell

YES

Akım Değeri

1A

Shell Material

Zinc Alloy

Özellikler

Backshell, Cable Clamp, Strain Relief

Shielding

Unshielded

Contact Materials

PHOSPHOR BRONZE

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Montaj

Free Hanging

Kurşunsuz Kodu

yes

Note

Contacts Not Included

Shell Finish

Nickel

Mil Conformance

NO

Total Number Of Contacts

20

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Additional Feature

COMPACTABLE CONTACT HR25-SC-111, HR25-SC-211

Voltage Rated Ac

30V

Insert Material

Polyphenylene Sulfide (PPS)

REACH Uyumluluk Kodu

unknown

Connector Type

Jack Housing

Orientation

Keyed

Mixed Contacts

NO
