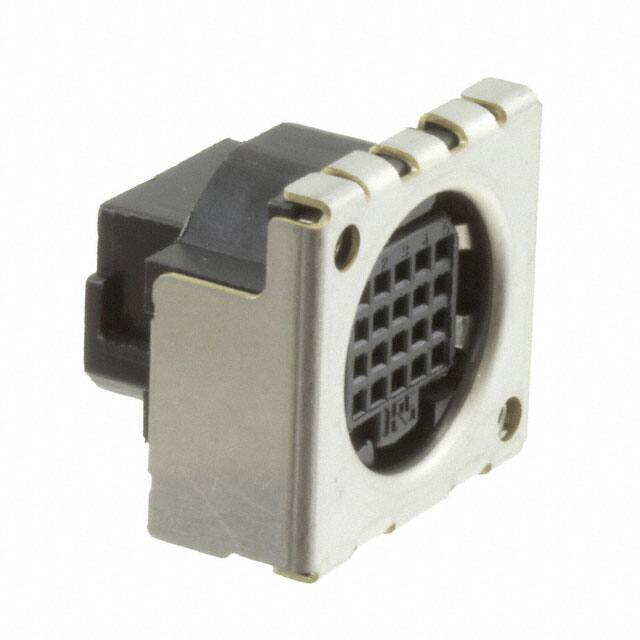

HR12-14RA-20SC

Teknik Özellikler

Fastening Type

Snap-In

Material Flammability Rating

UL94 V-0

Number Of Ports

1

Din Conformance

YES

Ambalaj

Tray

Contact Resistance

30mOhm

Pozisyon Sayısı

20

Emi Shielded

NO

Yayın Yılı

2009

REACH Uyumluluk Kodu

unknown

Additional Feature

PUSH/PULL LOCKING SYSTEM

Seri

HR12

Note

Contacts Not Included

Reference Standard

UL

Mounting Feature

Flange

Reliability

COMMERCIAL

Connector Type

Receptacle Housing

Mil Conformance

NO

Contact Type

Crimp

Rated Current Signal

1A

Polarization Key

POLARIZED HOUSING

Parça Durumu

Active

Total Number Of Contacts

20

Dielectric Withstanding Voltage

300VAC V

Housing Color

Black

Nominal Gerilim

100V

Body Length Or Diameter

0.827 inch

Tip

For Female Sockets

Çalışma Sıcaklığı

-15°C~60°C

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Keyed

Insert Material

Polybutylene Terephthalate (PBT)

Montaj Tipi

Panel Mount

Montaj

Panel

Fabrika Tedarik Süresi

10 Weeks

Contact Plating

Tin

Contact Gender

Female

Option

GENERAL PURPOSE

Contact Sizes

1.0mm
