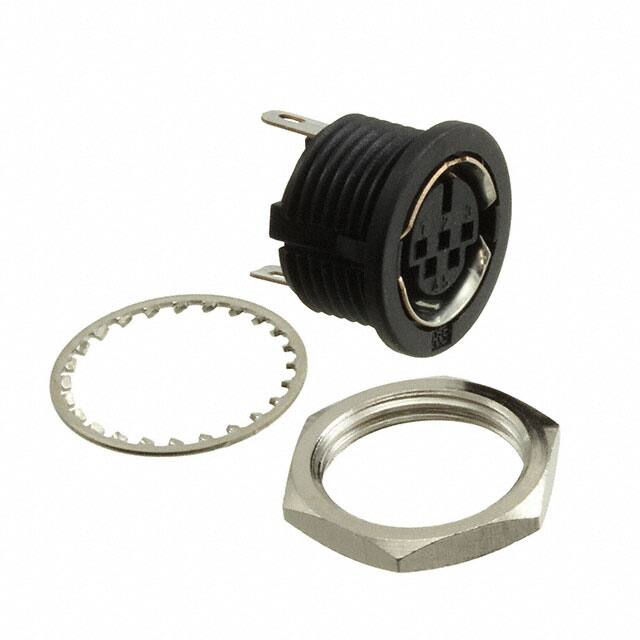

HR12-10R-5SC(71)

Teknik Özellikler

Shielding

Shielded

Contact Shape

Circular

Shell Material

Polybutylene Terephthalate (PBT)

Contact Type

Crimp

Iec Conformance

NO

JESD-609 Kodu

e3

Mil Conformance

NO

Connector Type

Receptacle Housing

Özellikler

Ground

Contact Materials

PHOSPHOR BRONZE

Contact Finish Termination

MATTE TIN

Total Number Of Contacts

5

Housing Color

Black

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Yayın Yılı

2009

Montaj Tipi

Panel Mount

Contact Finish Mating

MATTE TIN

Pozisyon Sayısı

5

Emi Shielded

NO

Montaj

Bulkhead, Panel, Rear Side Nut

Din Conformance

YES

Orientation

Keyed

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insert Material

Polybutylene Terephthalate (PBT)

Ambalaj

Tray

Kurşunsuz Kodu

yes

Fastening Type

Snap-In

Çalışma Sıcaklığı

-15°C~60°C

Material Flammability Rating

UL94 V-0

Tip

For Female Sockets

Mounting Feature

Bulkhead - Rear Side Nut

Shell Size Insert

10

Option

GENERAL PURPOSE

Seri

HR12

Contact Sizes

1.0mm

Note

Contacts Not Included

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks
