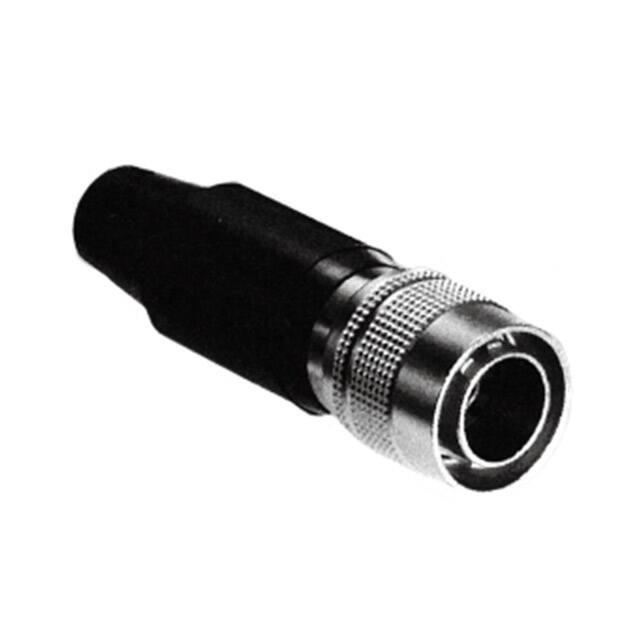

HR10B-10P-10PC(73)

Teknik Özellikler

Shielding

Unshielded

Contact Shape

Circular

Shell Material

Brass

Contact Type

Crimp and Solder

Iec Conformance

NO

JESD-609 Kodu

e4

Empty Shell

NO

Connector Type

Plug Housing

Mil Conformance

NO

Özellikler

Backshell, Cable Clamp, Coupling Nut, Strain Relief

Housing Color

Silver

Total Number Of Contacts

10

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Parça Durumu

Active

Shell Finish

Nickel

Pin Sayısı

11

Yayın Yılı

1998

Montaj Tipi

Free Hanging (In-Line)

Pozisyon Sayısı

11 (10 + 1 Coax)

Montaj

Free Hanging

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Keyed

Insert Material

Polybutylene Terephthalate (PBT)

Ambalaj

Bulk

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull

Çalışma Sıcaklığı

-20°C~85°C

Material Flammability Rating

UL94 V-0

Tip

For Male Pins

Shell Size Insert

10

Contact Sizes

1.0mm 10 1 Coaxial

Seri

HR10B

Option

GENERAL PURPOSE

Note

Contacts Not Included

Filter Feature

NO

Additional Feature

POLARIZED

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks
