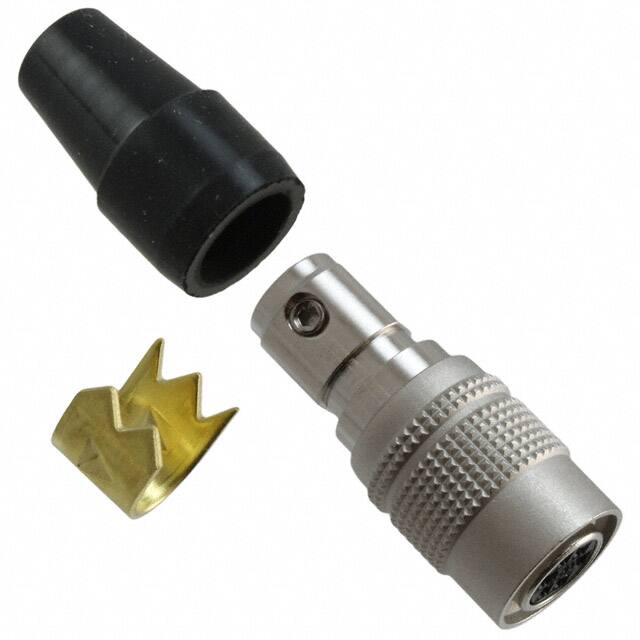

HR10A-7P-6SC(73)

Teknik Özellikler

Parça Durumu

Active

Durability

1000 Cycles

Nominal Gerilim

100V

Total Number Of Contacts

6

Housing Color

Silver

Empty Shell

NO

Reliability

COMMERCIAL

Mil Conformance

NO

Connector Type

Plug Housing

Polarization Key

POLARIZED HOUSING

Rated Current Signal

2A

Contact Type

Crimp

Filter Feature

NO

Additional Feature

POLARIZED

Note

Contacts Not Included

Seri

HR10A

Kurşunsuz

Lead Free

Contact Resistance

10mOhm

Ambalaj

Bulk

Din Conformance

NO

Number Of Ports

1

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Yayın Yılı

1998

Pozisyon Sayısı

6

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Shell Finish

Nickel

Özellikler

Backshell, Cable Clamp, Strain Relief

Contact Materials

Bronze

Insulation Resistance

1000000000Ohm

Contact Shape

Circular

Shell Material

Zinc Alloy

Shielding

Unshielded

JESD-609 Kodu

e4

Iec Conformance

NO

Akım Değeri

2A

Contact Gender

Female

Material

Metal

Fabrika Tedarik Süresi

12 Weeks
