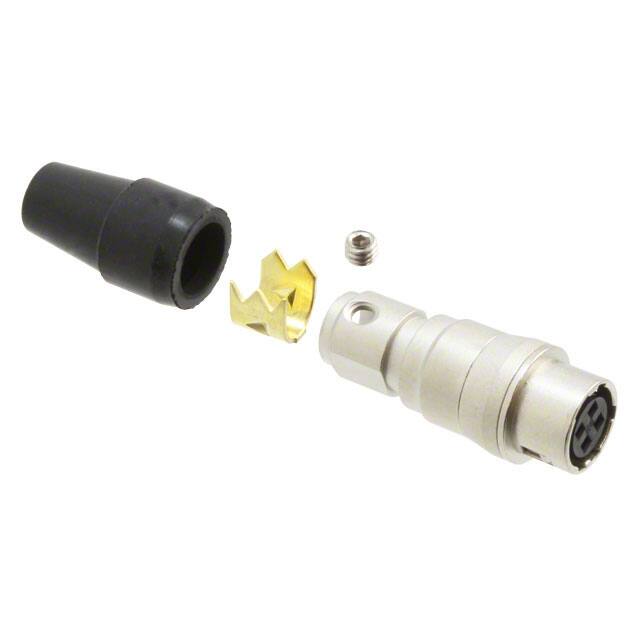

HR10A-7J-4SC(73)

Teknik Özellikler

Insulation Resistance

1000000000Ohm

Contact Materials

Bronze

Özellikler

Backshell, Cable Clamp, Strain Relief

Shielding

Unshielded

Shell Material

Zinc Alloy

Contact Shape

Circular

Iec Conformance

NO

Akım Değeri

2A

JESD-609 Kodu

e4

Mating Information

MULTIPLE MATING PARTS AVAILABLE

RoHS Durumu

RoHS Compliant

Shell Finish

Nickel

Body Depth

1.389 inch

Orientation

Keyed

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insert Material

Polybutylene Terephthalate (PBT)

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-20°C~85°C

Tip

For Female Sockets

Montaj Tipi

Free Hanging (In-Line)

Montaj

Cable, Free Hanging

ECCN Kodu

EAR99

Contact Gender

Female

Housing Material

Brass

Contact Plating

Gold, Silver

Fabrika Tedarik Süresi

10 Weeks

Shell Size Insert

7

Contact Sizes

1.0mm

Option

GENERAL PURPOSE

Empty Shell

NO

Connector Type

Jack Housing

Mil Conformance

NO

Reliability

COMMERCIAL

Polarization Key

POLARIZED HOUSING

Contact Type

Crimp

Rated Current Signal

2A

Parça Durumu

Active

Durability

1000 Cycles

Housing Color

Silver

Dielectric Withstanding Voltage

500VAC V
