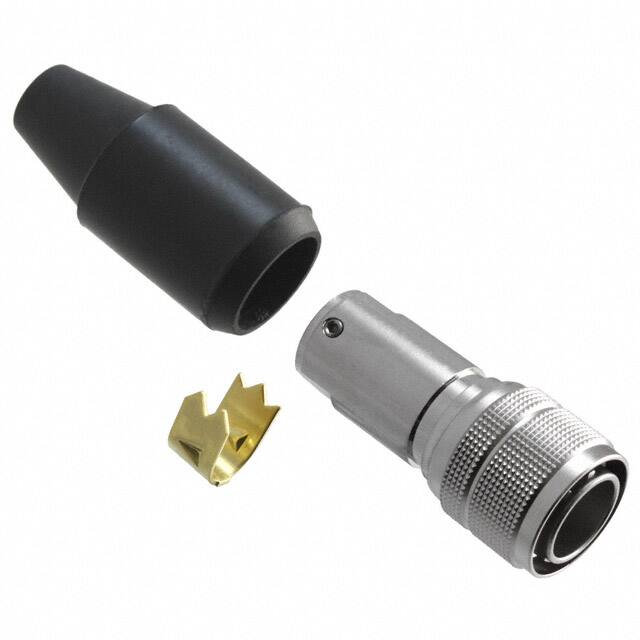

HR10A-13P-20PC(73)

Teknik Özellikler

Reliability

COMMERCIAL

Mil Conformance

NO

Connector Type

Plug Housing

Empty Shell

NO

Rated Current Signal

2A

Contact Type

Crimp

Polarization Key

POLARIZED HOUSING

Parça Durumu

Active

Nominal Gerilim

100V

Dielectric Withstanding Voltage

300VAC V

Housing Color

Silver

Total Number Of Contacts

20

Durability

1000 Cycles

Number Of Ports

1

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Contact Resistance

10mOhm

Ambalaj

Bulk

Din Conformance

NO

Pozisyon Sayısı

20

Yayın Yılı

1998

Additional Feature

POLARIZED

Filter Feature

NO

Note

Contacts Not Included

Seri

HR10A

Özellikler

Backshell, Cable Clamp, Strain Relief

Contact Materials

Bronze

Insulation Resistance

1000000000Ohm

JESD-609 Kodu

e4

Akım Değeri

2A

Iec Conformance

NO

Contact Shape

Circular

Shell Material

Zinc Alloy

Shielding

Unshielded

Shell Finish

Nickel

RoHS Durumu

RoHS Compliant

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-20°C~85°C
