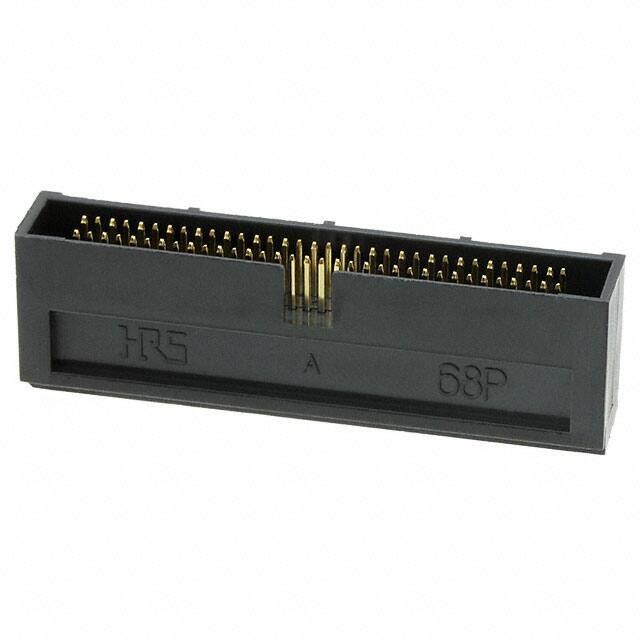

HIF6A-68PA-1.27DS(71)

Teknik Özellikler

Pcb Contact Pattern

STAGGERED

Option

GENERAL PURPOSE

Sıra Sayısı

2

Contact Finish Post

Tin

Pcb Contact Row Spacing

1.905 mm

Nominal Gerilim

300V

Contact Resistance

30mOhm

Contact Finish Mating

Gold

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm

Reference Standard

UL

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Contact Lengthmating

0.205 5.21mm

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

Body Depth

0.61 inch

Orientation

Right Angle

Number Of Conductors

ONE

Seri

HIF6

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.335 8.51mm

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Current Rating Amps

0.5A

HTS Kodu

8536.69.40.40

Contact Shape

Square

Pitch Mating

0.050 1.27mm

Montaj Tipi

Through Hole, Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Fastening Type

Push-Pull

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Mounting Option1

LOCKING

Ambalaj

Tray

Body Breadth

0.335 inch

Terminal

Solder

Number Of Positions Loaded

All
