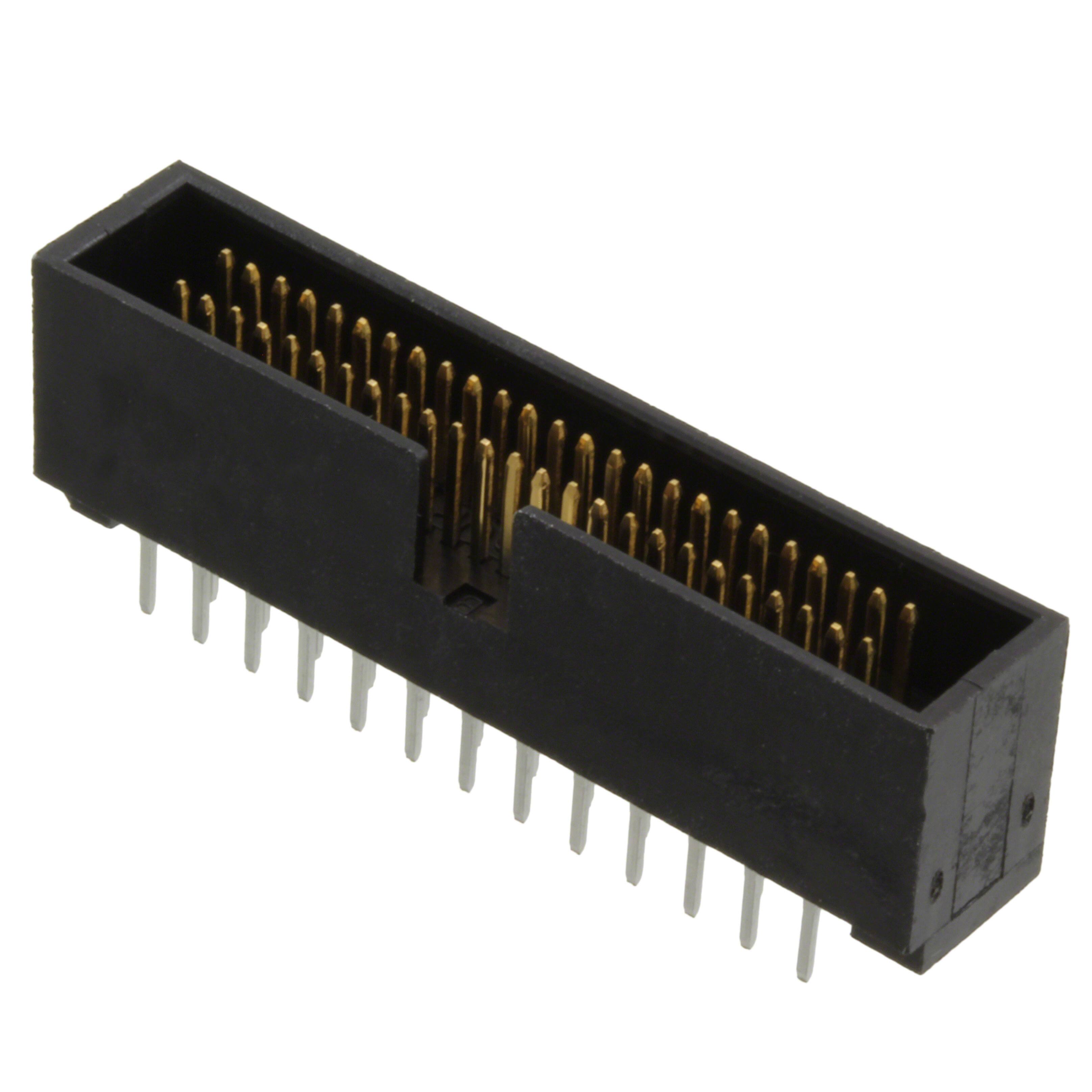

HIF6A-50PA-1.27DSA(71)

Teknik Özellikler

Contact Finish Mating

Gold

Contact Resistance

30mOhm

Kurşunsuz Kodu

no

Nominal Gerilim

300V

Contact Finish Post

Tin

Pcb Contact Row Spacing

1.905 mm

Option

GENERAL PURPOSE

Pcb Contact Pattern

STAGGERED

Sıra Sayısı

2

Mil Conformance

NO

Reference Standard

UL

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

4

Fabrika Tedarik Süresi

10 Weeks

Seri

HIF6

Number Of Conductors

ONE

Body Depth

0.453 inch

Insulation Color

Black

Orientation

Straight

Contact Lengthmating

0.205 5.21mm

Shrouding

Shrouded - 4 Wall

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Shape

Square

HTS Kodu

8536.69.40.40

Current Rating Amps

0.5A

Contact Length Post

0.110 2.79mm

Pitch Mating

0.050 1.27mm

Montaj Tipi

Through Hole

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Height

0.453 11.50mm

Number Of Positions Loaded

All

Mating Contact Pitch

0.05 inch

Terminal

Solder

Kurşunsuz

Lead Free

Body Breadth

0.315 inch
