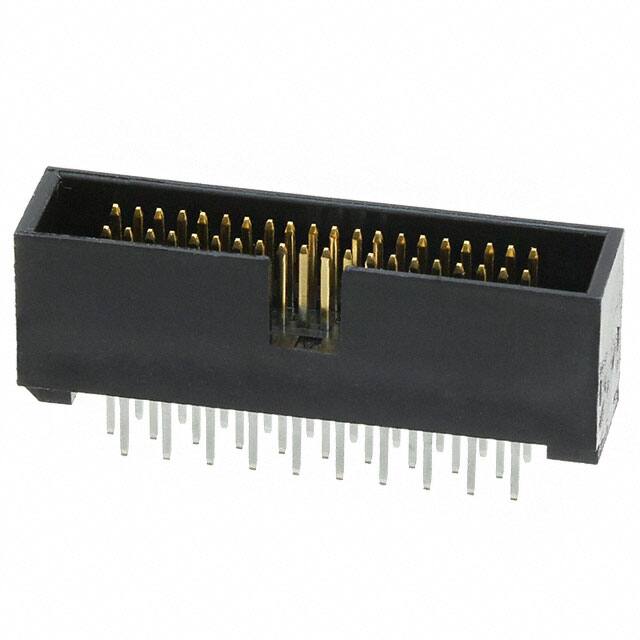

HIF6A-40PA-1.27DS(71)

Teknik Özellikler

Nominal Gerilim

300V

Pcb Contact Row Spacing

1.905 mm

Contact Finish Post

Tin

Sıra Sayısı

2

Pcb Contact Pattern

STAGGERED

Option

GENERAL PURPOSE

Contact Finish Mating

Gold

Contact Resistance

30mOhm

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Contact Materials

Brass

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

4

Mil Conformance

NO

Orientation

Right Angle

Body Depth

0.61 inch

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.205 5.21mm

Fabrika Tedarik Süresi

10 Weeks

Seri

HIF6

Number Of Conductors

ONE

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Height

0.335 8.51mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.050 1.27mm

Montaj Tipi

Through Hole, Right Angle

Contact Shape

Square

Current Rating Amps

0.5A

Body Breadth

0.335 inch

Ambalaj

Tray

Mounting Option1

LOCKING

Kurşunsuz

Lead Free

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Fastening Type

Push-Pull

Mating Contact Pitch

0.05 inch

Number Of Positions Loaded

All
