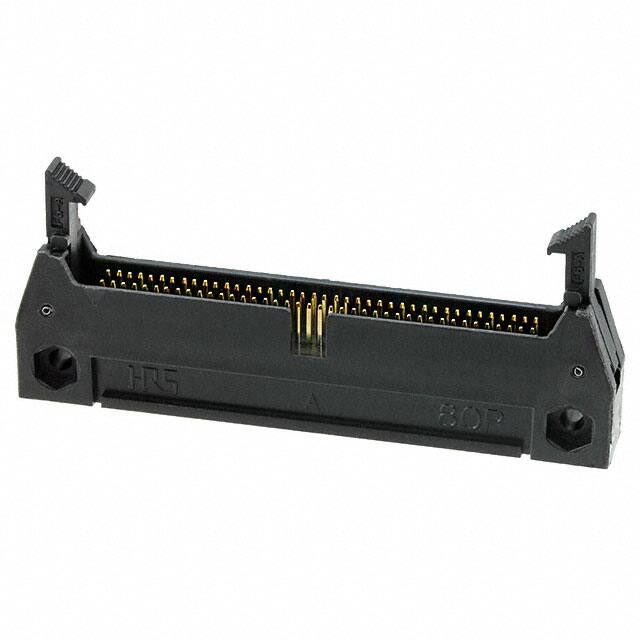

HIF6-80PA-1.27DSA(71)

Teknik Özellikler

Number Of Conductors

ONE

Seri

HIF6

Fabrika Tedarik Süresi

12 Weeks

Contact Gender

Male

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.217 5.50mm

Orientation

Straight

Insulation Color

Black

Montaj Tipi

Through Hole

Pitch Mating

0.050 1.27mm

Contact Length Post

0.110 2.79mm

HTS Kodu

8536.69.40.40

Current Rating Amps

0.5A

Contact Shape

Square

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.606 15.39mm

Overall Contact Length

0.563 14.30mm

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Kurşunsuz Kodu

no

Contact Resistance

30mOhm

Contact Finish Mating

Gold

Sıra Sayısı

2

Option

GENERAL PURPOSE

Pcb Contact Pattern

STAGGERED

Contact Finish Post

Tin

Pcb Contact Row Spacing

1.905 mm

Nominal Gerilim

300V

Mil Conformance

NO

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Contact Materials

Brass

Reliability

COMMERCIAL

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Header

Style

Board to Cable/Wire
