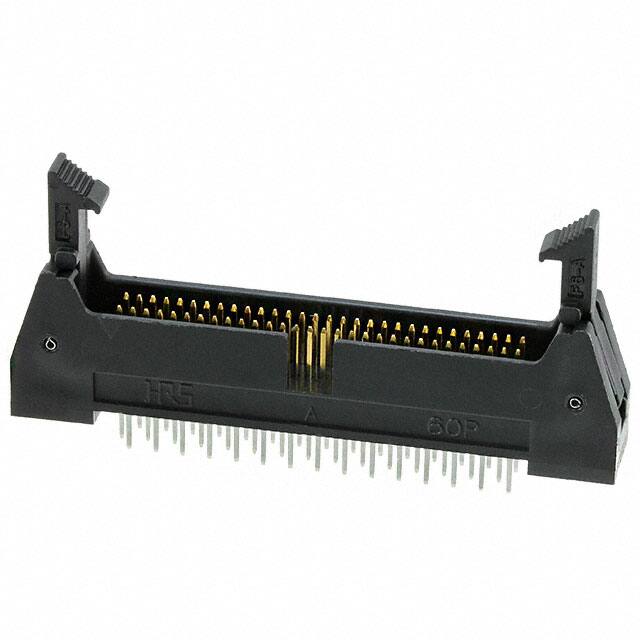

HIF6-60PA-1.27DSA(71)

Teknik Özellikler

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

4

Contact Materials

Brass

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Pcb Contact Pattern

STAGGERED

Option

GENERAL PURPOSE

Sıra Sayısı

2

Nominal Gerilim

300V

Pcb Contact Row Spacing

1.905 mm

Contact Finish Post

Tin

Contact Resistance

30mOhm

Kurşunsuz Kodu

no

Contact Finish Mating

Gold

Overall Contact Length

0.563 14.30mm

Insulation Height

0.606 15.39mm

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Shape

Square

Current Rating Amps

0.5A

Contact Length Post

0.110 2.79mm

Pitch Mating

0.050 1.27mm

Montaj Tipi

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Lengthmating

0.217 5.50mm

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

Orientation

Straight

Seri

HIF6

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Durability

500 Cycles

Insulation Materials

Polybutylene Terephthalate (PBT)

Housing Material

Polybutylene

Mixed Contacts

NO

Uzunluk

56.35mm
