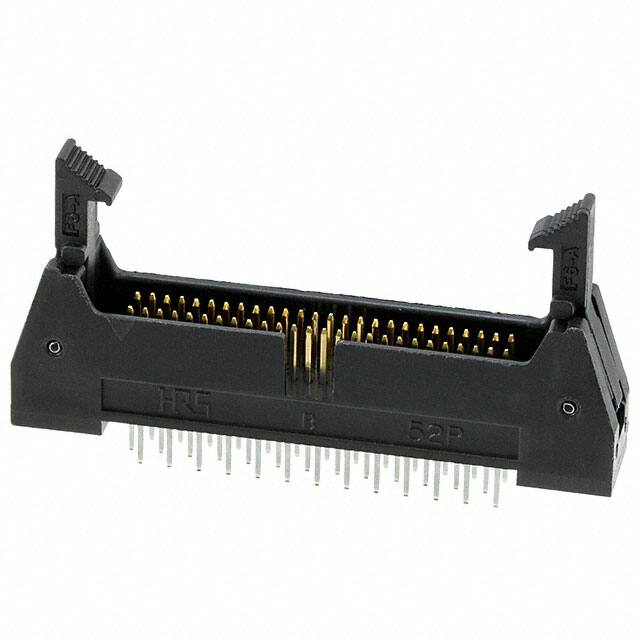

HIF6-52PA-1.27DS(71)

Teknik Özellikler

Body Depth

0.768 inch

Insulation Color

Black

Contact Lengthmating

0.217 5.50mm

Shrouding

Shrouded - 4 Wall

Contact Gender

Male

Fabrika Tedarik Süresi

10 Weeks

Seri

HIF6

Number Of Conductors

ONE

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Height

0.335 8.51mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

HTS Kodu

8536.69.40.40

Current Rating Amps

0.5A

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.050 1.27mm

Nominal Gerilim

300V

Contact Finish Post

Tin

Pcb Contact Row Spacing

1.905 mm

Pcb Contact Pattern

STAGGERED

Sıra Sayısı

2

Contact Finish Mating

Gold

Contact Resistance

30mOhm

Reference Standard

UL

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

4

Pozisyon Sayısı

52

Akım Değeri

500mA

Style

Board to Cable/Wire

Total Number Of Contacts

52

Connector Type

Header

Çalışma Sıcaklığı

-55°C~85°C

Reliability

COMMERCIAL

Length Termination

0.11 inch

Parça Durumu

Active

Özellikler

Keying Slot, Mounting Flange

RoHS Durumu

RoHS Compliant
