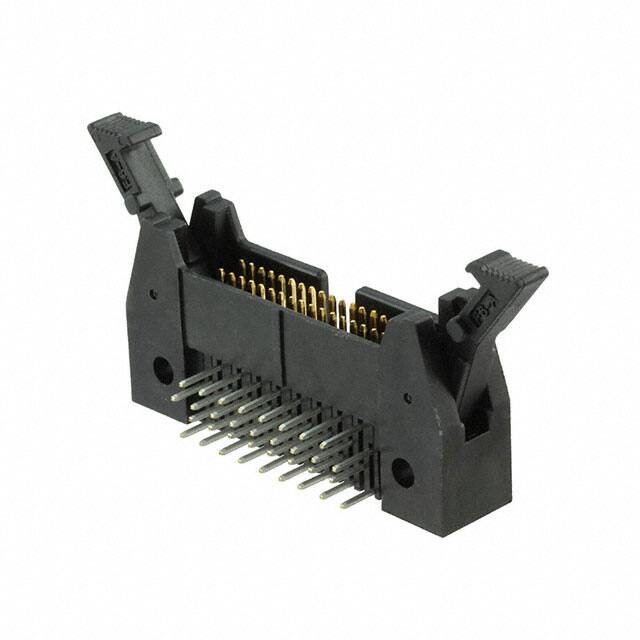

HIF6-34PA-1.27DS(71)

Teknik Özellikler

Contact Type

Male Pin

Uzunluk

29.84mm

Insulation Materials

Polybutylene Terephthalate (PBT)

Housing Material

Polybutylene

Durability

500 Cycles

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Mating Contact Pitch

0.05 inch

Number Of Positions Loaded

All

Terminal

Solder

Ambalaj

Tray

Kurşunsuz

Lead Free

Polarization Key

POLARIZED HOUSING

Fastening Type

Latch Lock/Eject Hooks

Mounting Option2

LOCKING

RoHS Durumu

RoHS Compliant

Yükseklik

8.5mm

Contact Finish Thickness Mating

8.00μin 0.203μm

Parça Durumu

Active

Özellikler

Keying Slot, Mounting Flange

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Header

Reliability

COMMERCIAL

Akım Değeri

500mA

Style

Board to Cable/Wire

Pozisyon Sayısı

34

Total Number Of Contacts

34

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

Reference Standard

UL

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

4

Contact Finish Mating

Gold

Contact Resistance

30mOhm

Nominal Gerilim

300V

Contact Finish Post

Tin

Pcb Contact Row Spacing

1.905 mm

Sıra Sayısı

2

Pcb Contact Pattern

STAGGERED

Nem Hassasiyeti (MSL)

1 (Unlimited)
