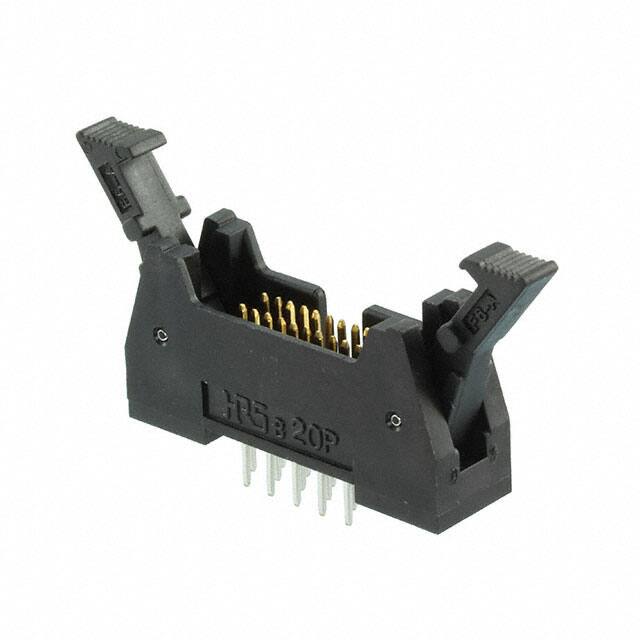

HIF6-20PA-1.27DSA(71)

Teknik Özellikler

Contact Finish Mating

Gold

Contact Resistance

30mOhm

Kurşunsuz Kodu

no

Nominal Gerilim

300V

Pcb Contact Row Spacing

1.905 mm

Contact Finish Post

Tin

Sıra Sayısı

2

Pcb Contact Pattern

STAGGERED

Option

GENERAL PURPOSE

Mil Conformance

NO

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

Reference Standard

UL

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

4

Fabrika Tedarik Süresi

10 Weeks

Seri

HIF6

Number Of Conductors

ONE

Orientation

Straight

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.217 5.50mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.110 2.79mm

Pitch Mating

0.050 1.27mm

Montaj Tipi

Through Hole

Contact Shape

Square

Current Rating Amps

0.5A

HTS Kodu

8536.69.40.40

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Height

0.606 15.39mm

Overall Contact Length

0.563 14.30mm

Mating Contact Pitch

0.05 inch

Number Of Positions Loaded

All

Terminal

Solder

Ambalaj

Tray

Mounting Option1

LATCH & EJECT

Kurşunsuz

Lead Free
