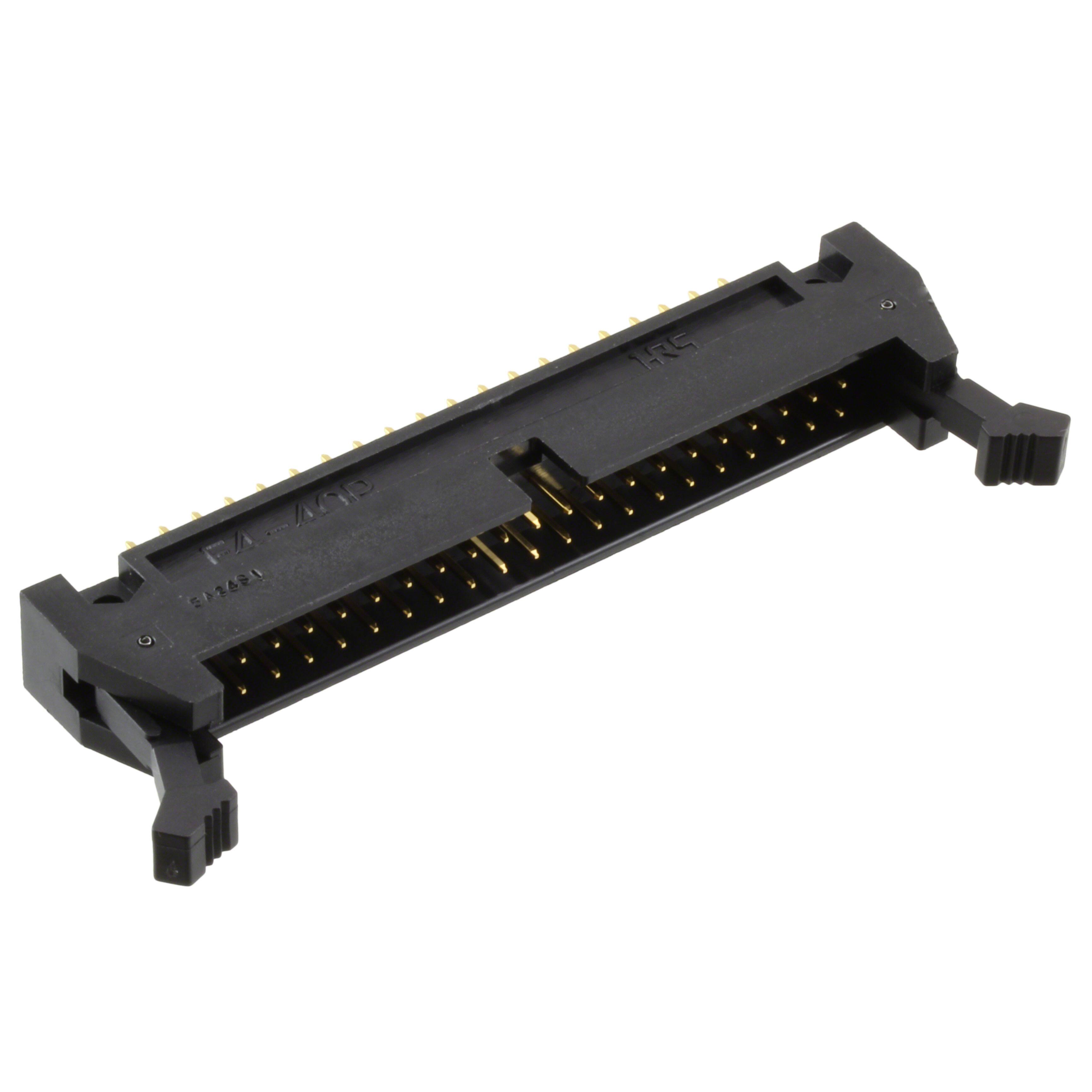

HIF4-40P-3.18DSA

Teknik Özellikler

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Fastening Type

Latch Lock/Eject Hooks

Ambalaj

Tray

Body Breadth

0.398 inch

Kurşunsuz

Lead Free

Terminal

Solder

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Housing Material

PBT

Insulation Materials

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Ul Flammability Code

94V-0

Contact Type

Male Pin

Dielectric Withstanding Voltage

1000VAC V

Uzunluk

84.84mm

Mixed Contacts

NO

Style

Board to Cable/Wire

Akım Değeri

3A

Pozisyon Sayısı

40

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Header

Rated Current Signal

3A

Özellikler

Keying Slot, Mounting Flange

Parça Durumu

Active

Contact Finish Thickness Mating

8.00μin 0.203μm

Terminal Adımı

3.18mm

Additional Feature

LATCHED, POLARIZED

Yükseklik

30mm

RoHS Durumu

RoHS Compliant

Sıra Sayısı

2

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

3.175 mm

Nominal Gerilim

300V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz Kodu

yes
