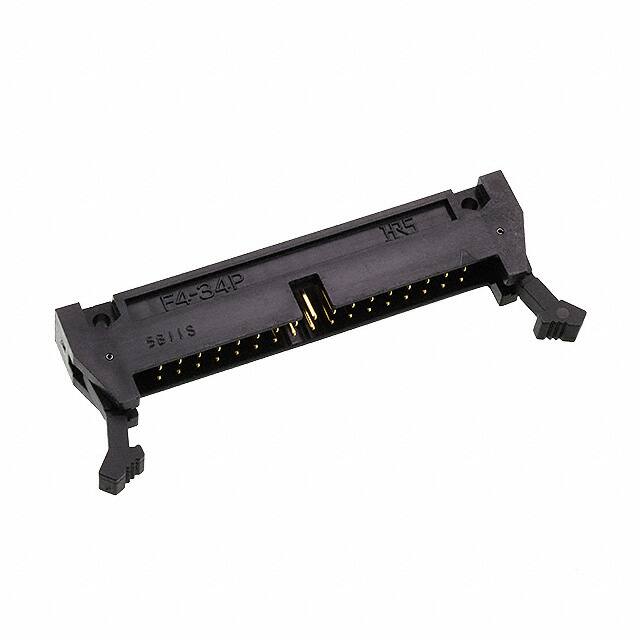

HIF4-34P-3.18DSA

Teknik Özellikler

Contact Finish Mating

Gold

Contact Resistance

15mOhm

Kurşunsuz Kodu

yes

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Nominal Gerilim

300V

Pcb Contact Row Spacing

3.175 mm

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Voltage Rated Ac

300V

Mil Conformance

NO

Reference Standard

UL

Contact Materials

Phosphor Bronze

REACH Uyumluluk Kodu

unknown

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

2

Contact Gender

Male

Fabrika Tedarik Süresi

10 Weeks

Seri

HIF4

Number Of Conductors

ONE

Body Depth

0.701 inch

JESD-609 Kodu

e3

Insulation Color

Black

Contact Lengthmating

0.201 5.10mm

Shrouding

Shrouded - 4 Wall

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Shape

Square

HTS Kodu

8536.69.40.40

Contact Length Post

0.142 3.60mm

Pitch Mating

0.125 3.18mm

Montaj Tipi

Through Hole

Row Spacing Mating

0.125 (3.18mm)

Overall Contact Length

0.673 17.09mm

Insulation Height

0.720 18.30mm

Number Of Positions Loaded

All

Terminal

Solder

Mounting Option1

LATCH & EJECT

Kurşunsuz

Lead Free

Body Breadth

0.398 inch
