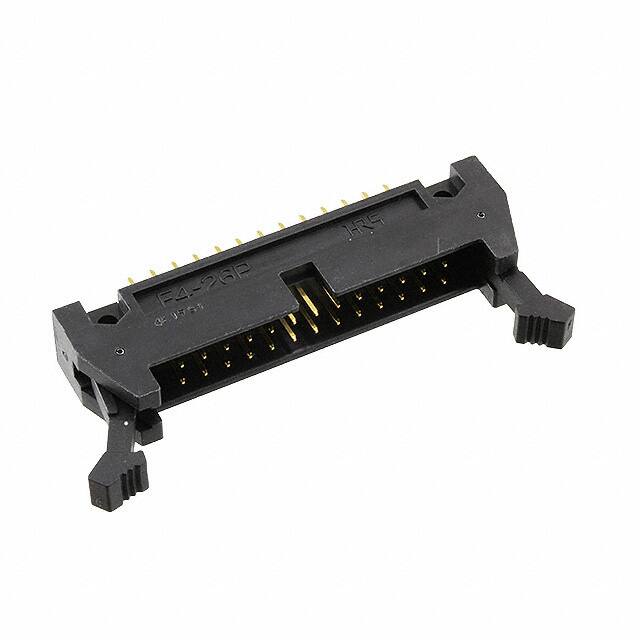

HIF4-26P-3.18DS

Teknik Özellikler

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Fastening Type

Latch Lock/Eject Hooks

Ambalaj

Tray

Body Breadth

0.398 inch

Kurşunsuz

Lead Free

Mounting Option1

LATCH & EJECT

Terminal

Solder

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Ul Flammability Code

94V-0

Contact Type

Male Pin

Dielectric Withstanding Voltage

1000VAC V

Mixed Contacts

NO

Style

Board to Cable/Wire

Pozisyon Sayısı

26

Reliability

COMMERCIAL

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Header

Özellikler

Keying Slot, Mounting Flange

Parça Durumu

Active

Length Termination

0.138 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

Terminal Adımı

3.18mm

Additional Feature

LATCHED, POLARIZED

Mounting Option2

LOCKING

RoHS Durumu

RoHS Compliant

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Pcb Contact Row Spacing

3.175 mm

Nominal Gerilim

300V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

15mOhm

Kurşunsuz Kodu

yes

Contact Finish Mating

Gold
