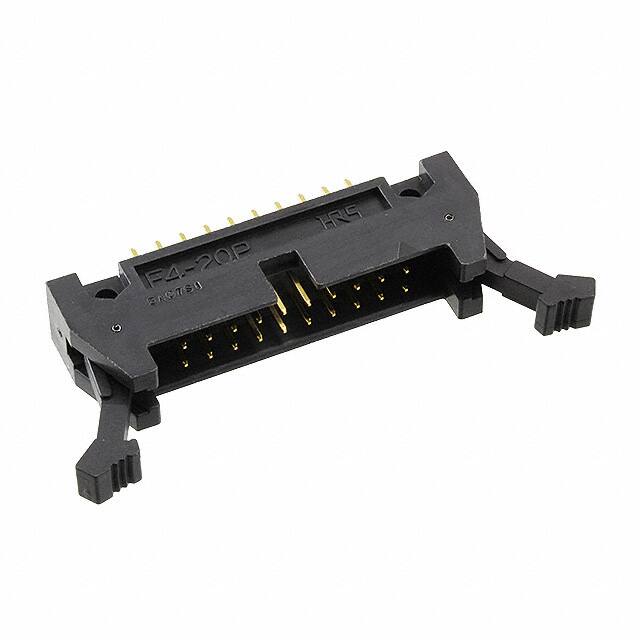

HIF4-20P-3.18DSA

Teknik Özellikler

Durability

500 Cycles

Ul Flammability Code

94V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Housing Material

Polybutylene

Uzunluk

53.04mm

Mixed Contacts

NO

Contact Type

Male Pin

Dielectric Withstanding Voltage

1000VAC V

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Terminal

Solder

Number Of Positions Loaded

All

Fastening Type

Latch Lock/Eject Hooks

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Kurşunsuz

Lead Free

Mounting Option1

LATCH & EJECT

Ambalaj

Tray

Body Breadth

0.398 inch

Additional Feature

LATCHED, POLARIZED

Terminal Adımı

3.18mm

Contact Finish Thickness Mating

8.00μin 0.203μm

Yükseklik

30mm

RoHS Durumu

RoHS Compliant

Mounting Option2

LOCKING

Özellikler

Keying Slot, Mounting Flange

Parça Durumu

Active

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Header

Rated Current Signal

3A

Çalışma Sıcaklığı

-55°C~85°C

Pozisyon Sayısı

20

Style

Board to Cable/Wire

Akım Değeri

3A

Voltage Rated Ac

300V

Mil Conformance

NO

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Contact Materials

Phosphor Bronze
