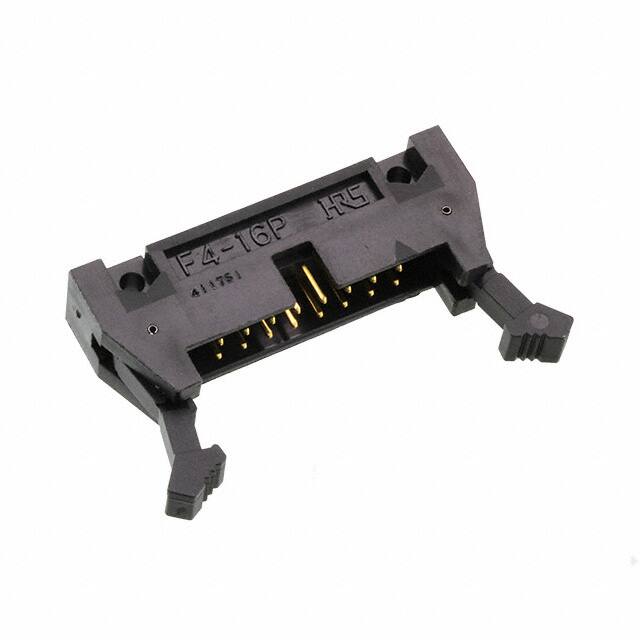

HIF4-16P-3.18DS

Teknik Özellikler

Contact Finish Mating

Gold

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

15mOhm

Kurşunsuz Kodu

yes

Pcb Contact Row Spacing

3.175 mm

Nominal Gerilim

300V

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Voltage Rated Ac

300V

Mil Conformance

NO

REACH Uyumluluk Kodu

unknown

Contact Materials

Phosphor Bronze

Reference Standard

UL

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Male

Number Of Conductors

ONE

Seri

HIF4

Insulation Color

Black

JESD-609 Kodu

e4

Body Depth

0.701 inch

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.201 5.10mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.125 3.18mm

Montaj Tipi

Through Hole, Right Angle

Contact Length Post

0.138 3.50mm

Contact Shape

Square

Row Spacing Mating

0.125 (3.18mm)

Insulation Height

0.394 10.00mm

Number Of Positions Loaded

All

Terminal

Solder

Ambalaj

Tray

Body Breadth

0.398 inch

Mounting Option1

LATCH & EJECT

Polarization Key

POLARIZED HOUSING

Din Conformance

NO
