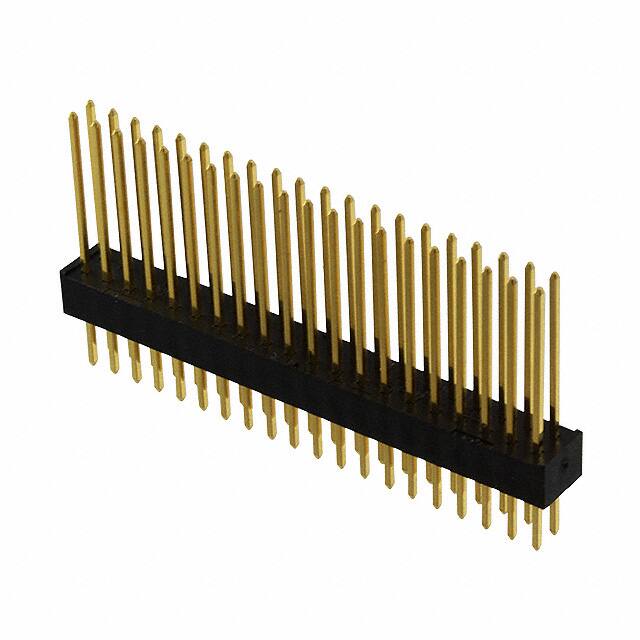

HIF3H-40P-2.54W

Teknik Özellikler

Mil Conformance

NO

Voltage Rated Ac

300V

Insulation Resistance

10000000Ohm

Number Of Pcb Rows

2

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Contact Materials

Brass

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

15mOhm

Kurşunsuz Kodu

yes

Contact Finish Mating

Gold

Sıra Sayısı

2

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Nominal Gerilim

300V

Contact Length Post

0.630 16.00mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Contact Shape

Square

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.177 4.50mm

Overall Contact Length

1.043 26.50mm

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

8.00μin 0.203μm

Seri

HIF3H

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Male

Shrouding

Unshrouded

Contact Lengthmating

0.276 7.00mm

Body Depth

0.177 inch

JESD-609 Kodu

e3

Insulation Color

Black

Housing Material

Polybutylene

Insulation Materials

Polybutylene Terephthalate (PBT)

Ul Flammability Code

94V-0

Durability

500 Cycles

Dielectric Withstanding Voltage

650VAC V

Contact Type

Male Pin
