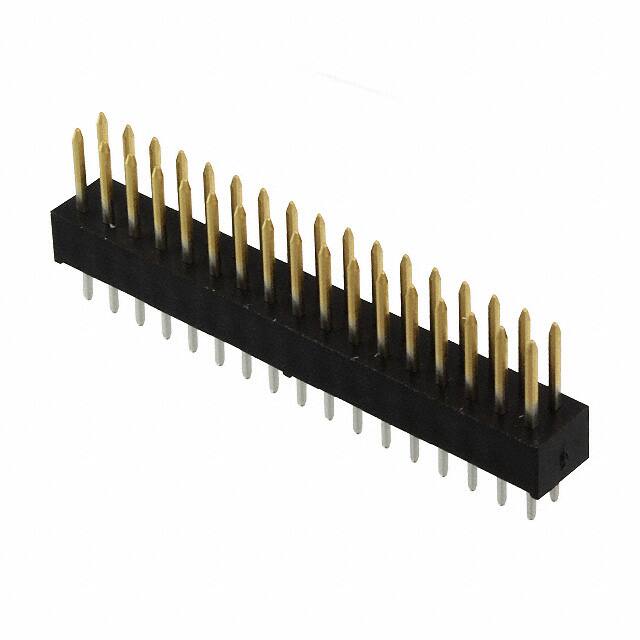

HIF3H-34PB-2.54DSA(71)

Teknik Özellikler

Contact Finish Mating

Gold

Contact Resistance

15mOhm

Kurşunsuz Kodu

yes

Nominal Gerilim

300V

Contact Finish Post

Tin

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Mil Conformance

NO

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Contact Materials

Brass

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

2

Fabrika Tedarik Süresi

10 Weeks

Seri

HIF3H

Number Of Conductors

ONE

Body Depth

0.177 inch

JESD-609 Kodu

e4

Insulation Color

Black

Shrouding

Unshrouded

Contact Lengthmating

0.276 7.00mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.138 3.50mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Contact Shape

Square

Current Rating Amps

3A

HTS Kodu

8536.69.40.40

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Height

0.177 4.50mm

Overall Contact Length

0.591 15.00mm

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

Terminal

Solder

Ambalaj

Tray

Mounting Option1

LOCKING

Kurşunsuz

Lead Free
