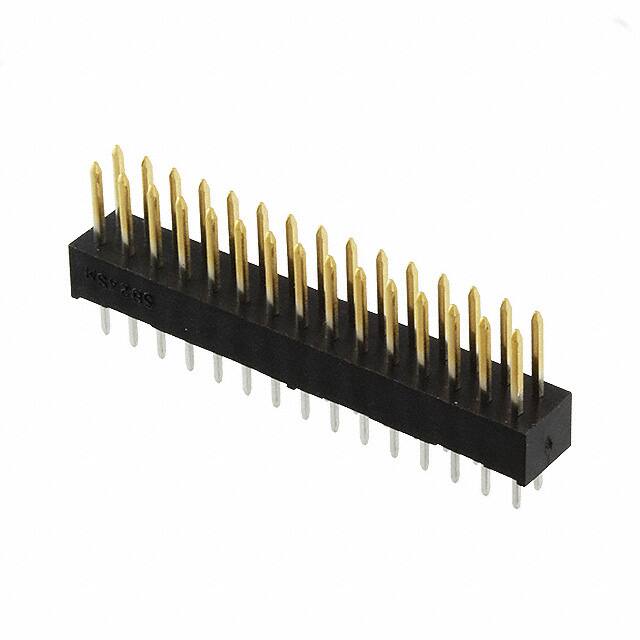

HIF3H-30PB-2.54DSA(71)

Teknik Özellikler

Kurşunsuz Kodu

yes

Contact Resistance

15mOhm

Contact Finish Mating

Gold

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Sıra Sayısı

2

Nominal Gerilim

300V

Contact Finish Post

Tin

Mil Conformance

NO

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

2

Reference Standard

UL

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Seri

HIF3H

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Contact Lengthmating

0.276 7.00mm

Shrouding

Unshrouded

Body Depth

0.177 inch

Insulation Color

Black

JESD-609 Kodu

e4

Contact Shape

Square

HTS Kodu

8536.69.40.40

Current Rating Amps

3A

Contact Length Post

0.138 3.50mm

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Overall Contact Length

0.591 15.00mm

Insulation Height

0.177 4.50mm

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Terminal

Solder

Number Of Positions Loaded

All

Mating Contact Pitch

0.1 inch

Fastening Type

Push-Pull

Din Conformance

NO

Polarization Key

POLARIZED HOUSING
