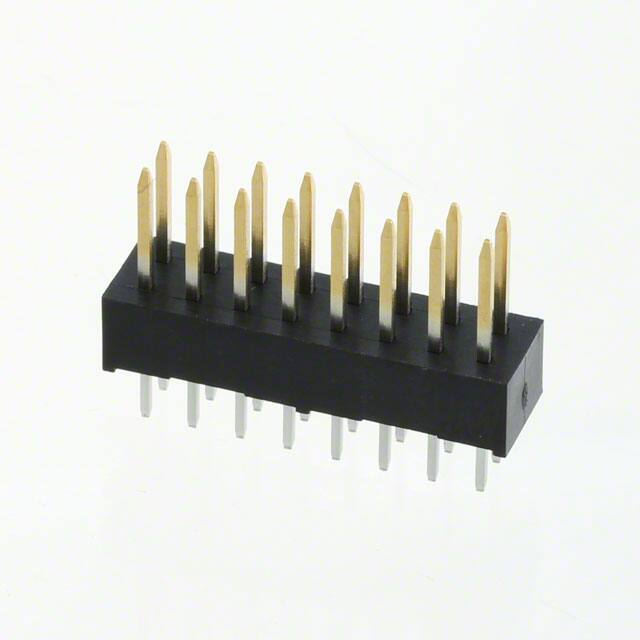

HIF3H-16PB-2.54DSA(71)

Teknik Özellikler

Insulation Materials

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Ul Flammability Code

94V-0

Contact Type

Male Pin

Dielectric Withstanding Voltage

1000VAC V

Mixed Contacts

NO

Material Flammability Rating

UL94 V-0

Terminal

Solder

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Fastening Type

Push-Pull

Ambalaj

Tray

Mounting Option1

LOCKING

Contact Finish Thickness Mating

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Length Termination

0.138 inch

Reliability

COMMERCIAL

Filter Feature

NO

Body Length Or Diameter

0.839 inch

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Header

Style

Board to Board

Pozisyon Sayısı

16

Mil Conformance

NO

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

REACH Uyumluluk Kodu

unknown

Contact Materials

Brass

Reference Standard

UL

Contact Resistance

15mOhm

Kurşunsuz Kodu

yes

Contact Finish Mating

Gold

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Contact Finish Post

Tin

Nominal Gerilim

300V
