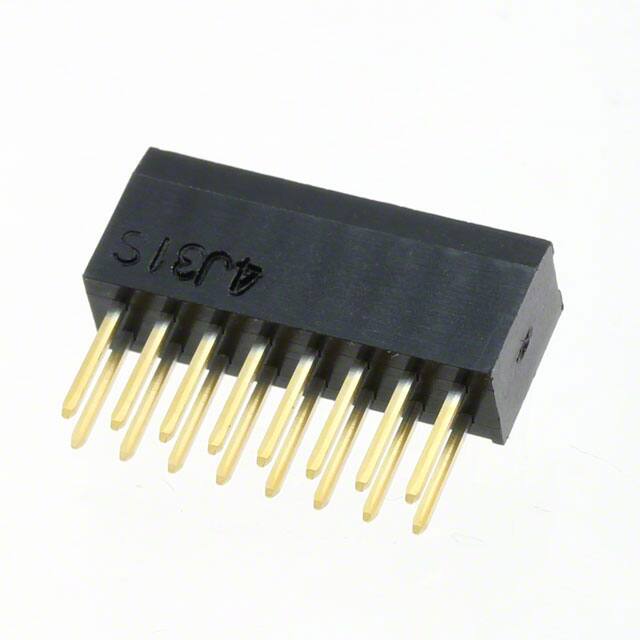

HIF3H-16PA-2.54DS(71)

Teknik Özellikler

Contact Materials

Brass

Material Flammability Rating

UL94 V-0

Pin Sayısı

16

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Type

Male Pin

Fastening Type

Push-Pull

Sıra Sayısı

2

Kurşunsuz

Lead Free

Nominal Gerilim

300V

Ambalaj

Tray

Contact Finish Post

Tin

Terminal

Solder

Number Of Positions Loaded

All

Contact Finish Mating

Gold

Parça Durumu

Active

Insulation Height

0.236 6.00mm

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Shape

Square

Current Rating Amps

3A

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Length Post

0.130 3.30mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Lengthmating

0.276 7.00mm

Shrouding

Unshrouded

Insulation Color

Black

Pozisyon Sayısı

16

Style

Board to Board

Seri

HIF3H

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~85°C
