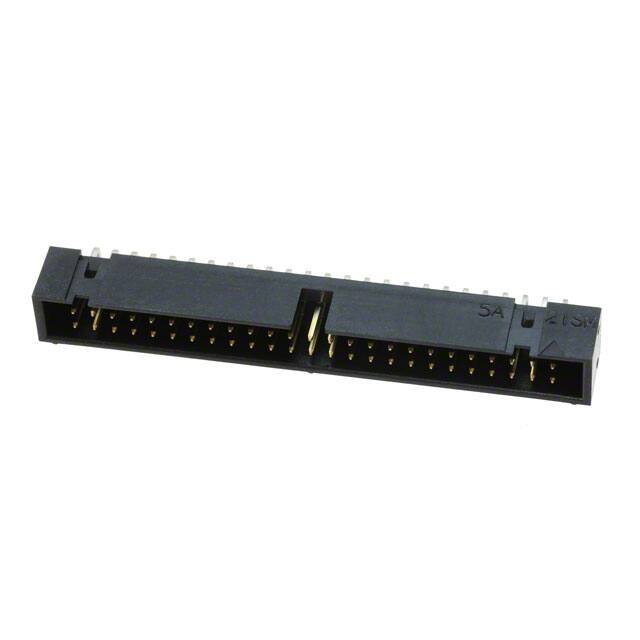

HIF3FC-50PA-2.54DS(71)

Teknik Özellikler

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Reference Standard

UL

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Contact Finish Post

Tin

Nominal Gerilim

200V

Kurşunsuz Kodu

no

Contact Resistance

15mOhm

Contact Finish Mating

Gold

Insulation Height

0.335 8.51mm

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

HTS Kodu

8536.69.40.40

Contact Shape

Square

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.100 2.54mm

Contact Length Post

0.118 3.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Lengthmating

0.236 6.00mm

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e4

Insulation Color

Black

Orientation

Right Angle

Number Of Conductors

ONE

Seri

HIF3FC

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Mixed Contacts

NO

Contact Type

Male Pin

Fastening Type

Push-Pull

Din Conformance

NO
