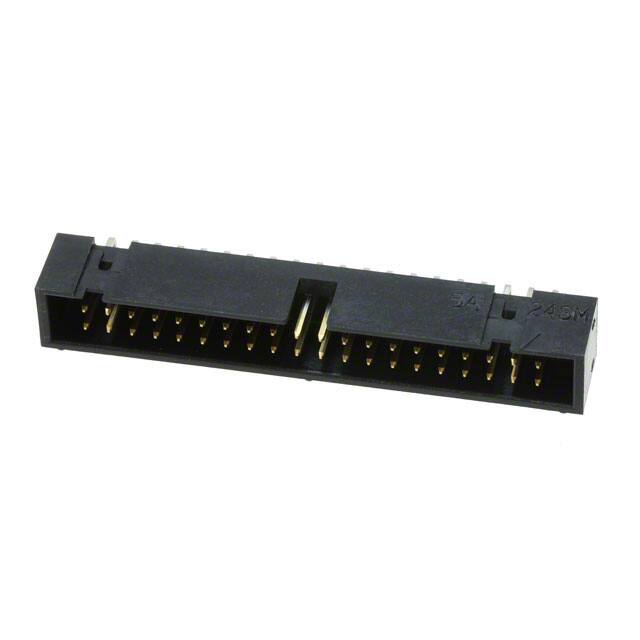

HIF3FC-40PA-2.54DS(71)

Teknik Özellikler

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.236 6.00mm

Orientation

Right Angle

JESD-609 Kodu

e4

Insulation Color

Black

Body Depth

0.501 inch

Number Of Conductors

ONE

Seri

HIF3FC

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.335 8.51mm

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

Contact Length Post

0.118 3.00mm

Contact Shape

Square

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Contact Finish Post

Tin

Nominal Gerilim

200V

Contact Resistance

15mOhm

Kurşunsuz Kodu

no

Contact Finish Mating

Gold

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Contact Materials

Brass

Mil Conformance

NO

Style

Board to Board or Cable

Akım Değeri

1A

Pozisyon Sayısı

40

Reliability

COMMERCIAL

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Header

Rated Current Signal

1A
