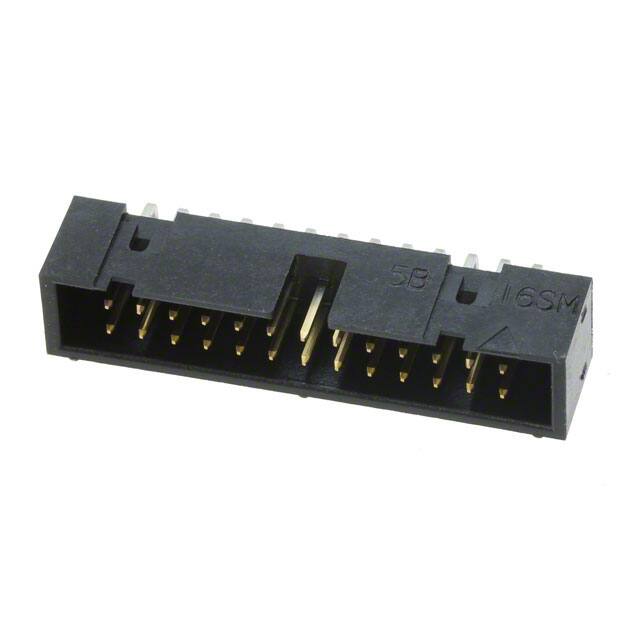

HIF3FC-26PA-2.54DSA(71)

Teknik Özellikler

Mil Conformance

NO

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Contact Materials

Brass

Reference Standard

UL

Contact Resistance

15mOhm

Kurşunsuz Kodu

no

Contact Finish Mating

Gold

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Sıra Sayısı

2

Contact Finish Post

Tin

Nominal Gerilim

200V

HTS Kodu

8536.69.40.40

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Contact Length Post

0.110 2.79mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Insulation Height

0.350 8.89mm

Contact Finish Thickness Post

78.7μin 2.00μm

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Number Of Conductors

ONE

Seri

HIF3FC

Fabrika Tedarik Süresi

10 Weeks

Contact Lengthmating

0.236 6.00mm

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

JESD-609 Kodu

e3

Body Depth

0.35 inch

Orientation

Straight

Durability

500 Cycles

Ul Flammability Code

94V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Mixed Contacts

NO

Contact Type

Male Pin

Dielectric Withstanding Voltage

650VAC V

ECCN Kodu

EAR99
