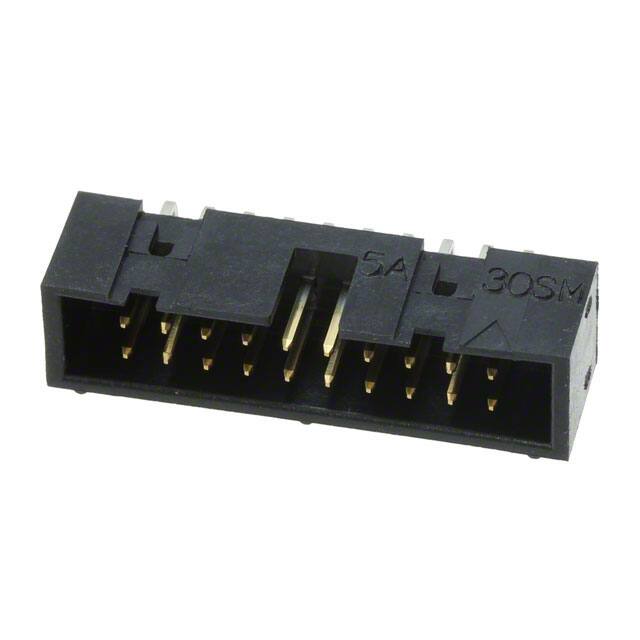

HIF3FC-20PA-2.54DS(71)

Teknik Özellikler

Length Termination

0.118 inch

Özellikler

Keying Slot

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

8.00μin 0.203μm

Additional Feature

LOW PROFILE

Style

Board to Board or Cable

Akım Değeri

1A

Pozisyon Sayısı

20

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Header

Rated Current Signal

1A

Reliability

COMMERCIAL

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Contact Type

Male Pin

Dielectric Withstanding Voltage

650VAC V

Mixed Contacts

NO

Insulation Materials

Polybutylene Terephthalate (PBT)

Housing Material

PBT

Durability

500 Cycles

Ul Flammability Code

94V-0

Ambalaj

Tray

Body Breadth

0.335 inch

Mounting Option1

LOCKING

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Fastening Type

Push-Pull

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

Terminal

Solder

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.335 8.51mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.100 2.54mm

Contact Length Post

0.118 3.00mm

Contact Shape

Square
