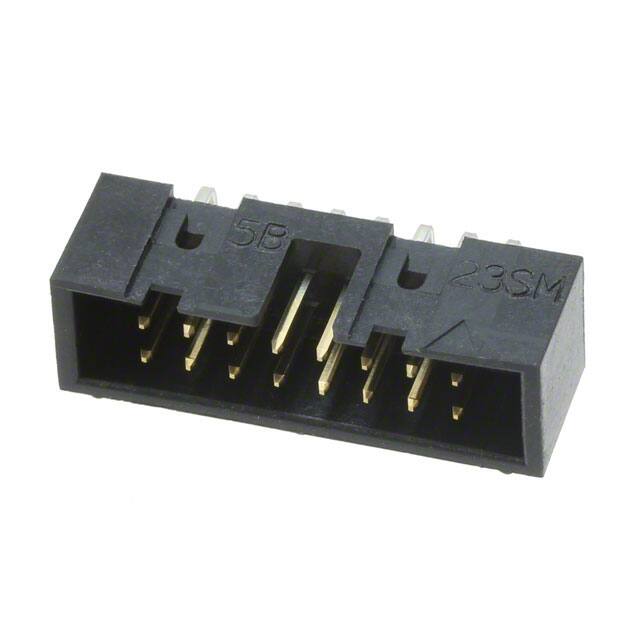

HIF3FC-16PA-2.54DS(71)

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Contact Shape

Square

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.100 2.54mm

Contact Length Post

0.118 3.00mm

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.335 8.51mm

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Seri

HIF3FC

Insulation Color

Black

JESD-609 Kodu

e4

Body Depth

0.501 inch

Orientation

Right Angle

Contact Lengthmating

0.236 6.00mm

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Contact Materials

Brass

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Contact Finish Mating

Gold

Contact Resistance

15mOhm

Kurşunsuz Kodu

no

Contact Finish Post

Tin

Nominal Gerilim

200V

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Sıra Sayısı

2

RoHS Durumu

RoHS Compliant

Additional Feature

LOW PROFILE

Contact Finish Thickness Mating

8.00μin 0.203μm

Length Termination

0.118 inch

Özellikler

Keying Slot

Parça Durumu

Active

Connector Type

Header
