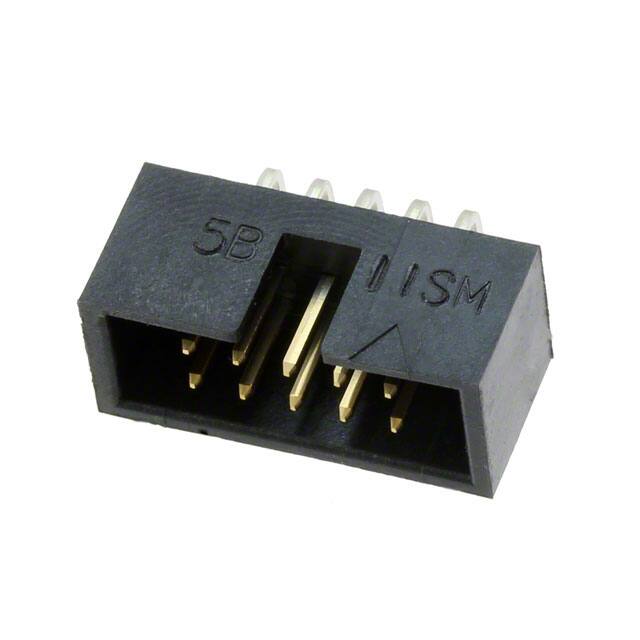

HIF3FC-10PA-2.54DSA(71)

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Yükseklik

9.2mm

Contact Finish Thickness Mating

8.00μin 0.203μm

Additional Feature

LOW PROFILE

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~85°C

Rated Current Signal

1A

Connector Type

Header

Reliability

COMMERCIAL

Filter Feature

NO

Radyasyon Dayanımı

No

Akım Değeri

1A

Style

Board to Board or Cable

Pozisyon Sayısı

10

Dielectric Withstanding Voltage

650VAC V

Contact Type

Male Pin

Mixed Contacts

NO

Uzunluk

20.2mm

Housing Material

Polybutylene

Insulation Materials

Polybutylene Terephthalate (PBT)

Ul Flammability Code

94V-0

Durability

500 Cycles

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

Terminal

Solder

Body Breadth

0.335 inch

Ambalaj

Tray

Mounting Option1

LOCKING

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Fastening Type

Push-Pull

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.110 2.79mm

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Contact Shape

Square

HTS Kodu

8536.69.40.40
