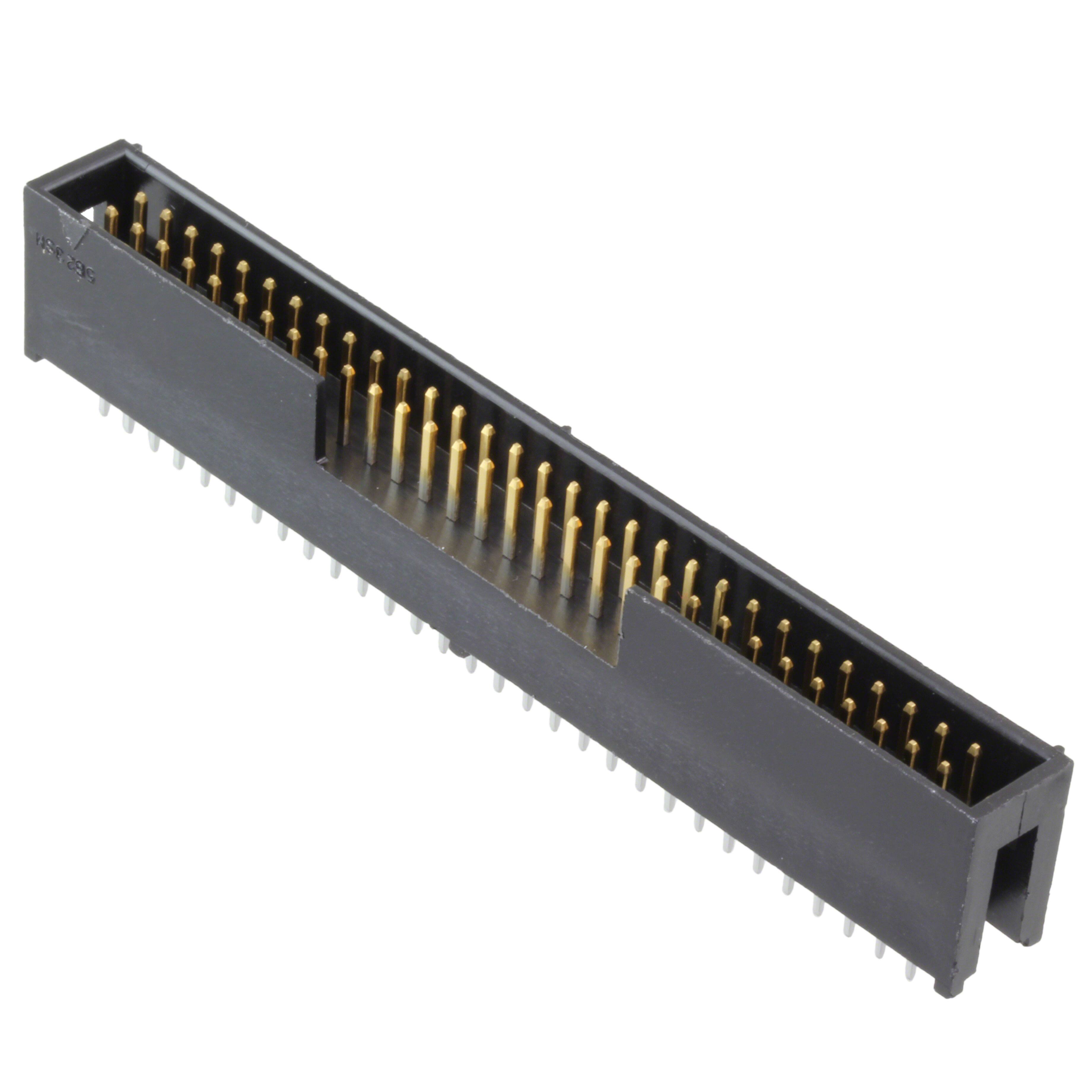

HIF3F-60PA-2.54DSA(71)

Teknik Özellikler

HTS Kodu

8536.69.40.40

Current Rating Amps

1A

Contact Shape

Square

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Contact Length Post

0.130 3.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Overall Contact Length

0.622 15.80mm

Insulation Height

0.547 13.90mm

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Number Of Conductors

ONE

Seri

HIF3

Fabrika Tedarik Süresi

10 Weeks

Contact Lengthmating

0.236 6.00mm

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

JESD-609 Kodu

e4

Body Depth

0.547 inch

Mil Conformance

NO

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Reference Standard

UL

Contact Materials

BRASS

REACH Uyumluluk Kodu

unknown

Contact Resistance

15mOhm

Contact Finish Mating

Gold

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Contact Finish Post

Tin

Nominal Gerilim

200V

Contact Finish Thickness Mating

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Özellikler

Keying Slot

Parça Durumu

Active

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Header
