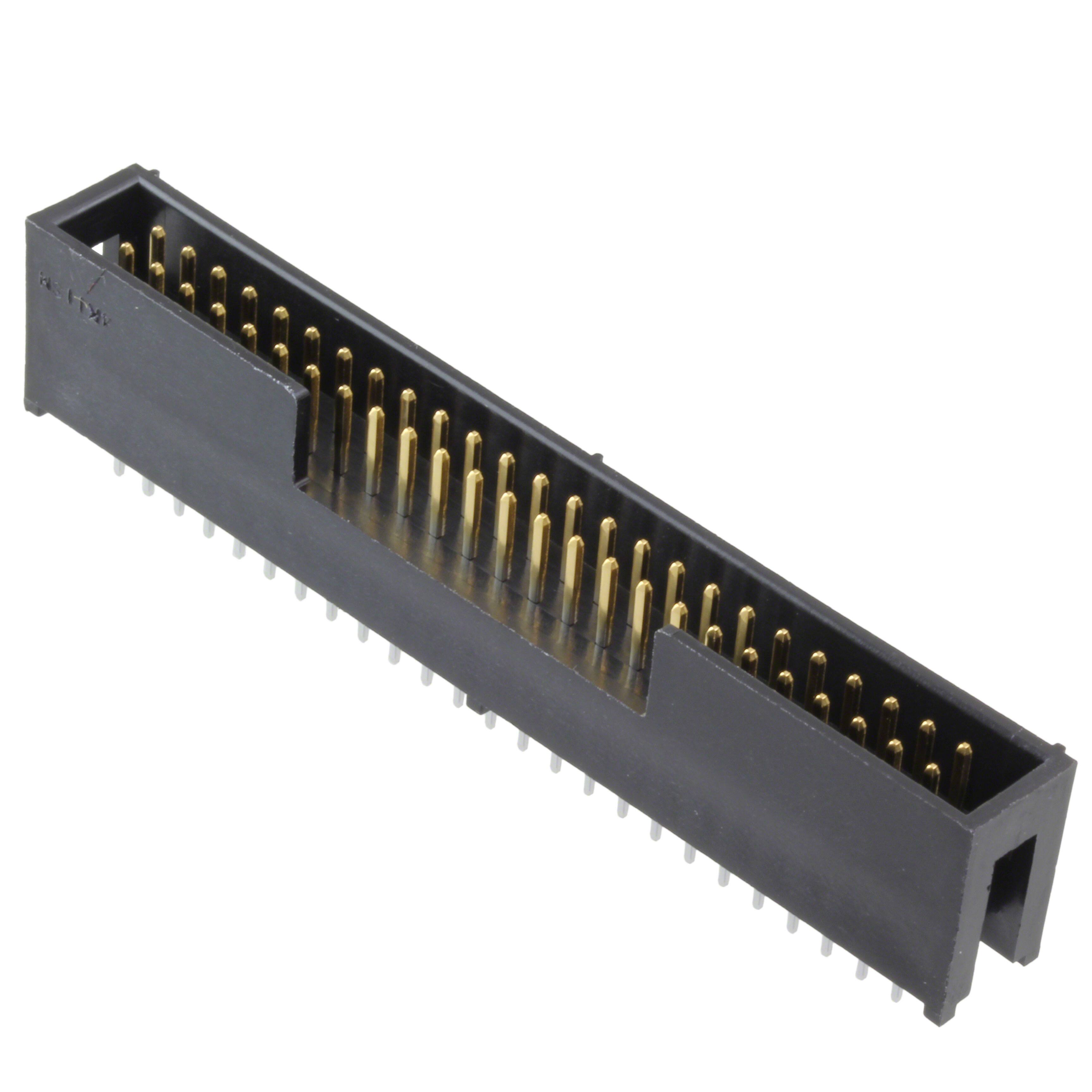

HIF3F-50PA-2.54DS(71)

Teknik Özellikler

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.335 8.51mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Current Rating Amps

1A

Contact Shape

Square

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.100 2.54mm

Contact Length Post

0.118 3.00mm

Insulation Color

Black

Body Depth

0.547 inch

Contact Lengthmating

0.236 6.00mm

Shrouding

Shrouded - 4 Wall

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Seri

HIF3

Reference Standard

UL

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Mil Conformance

NO

Contact Finish Post

Tin

Nominal Gerilim

200V

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Sıra Sayısı

2

Contact Finish Mating

Gold

Contact Resistance

15mOhm

Length Termination

0.118 inch

Özellikler

Keying Slot

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

8.00μin 0.203μm

Pozisyon Sayısı

50

Style

Board to Cable/Wire

Connector Type

Header

Çalışma Sıcaklığı

-55°C~85°C
