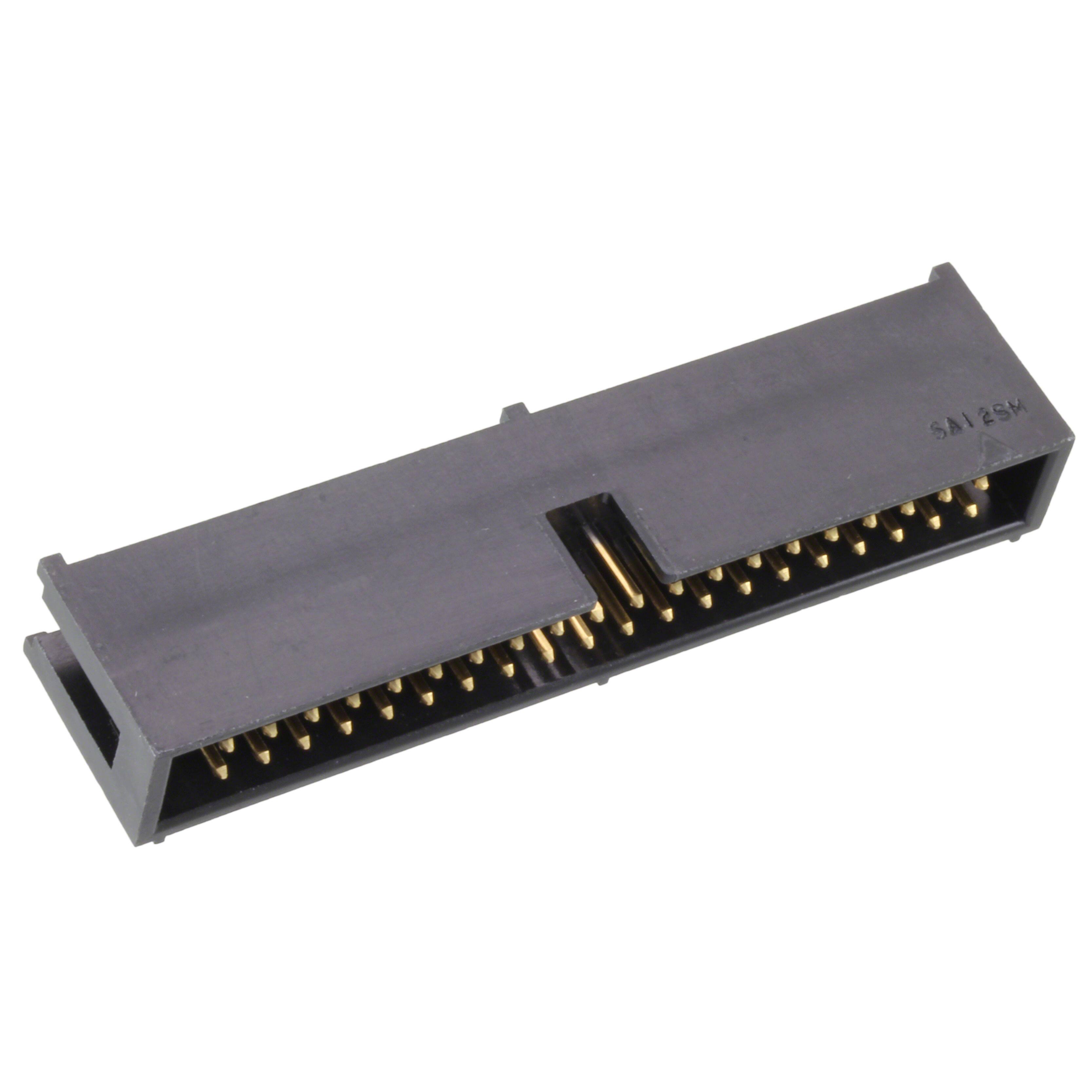

HIF3F-40PA-2.54DS(71)

Teknik Özellikler

Mil Conformance

NO

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

2

Reference Standard

UL

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Kurşunsuz Kodu

no

Contact Resistance

15mOhm

Contact Finish Mating

Gold

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Nominal Gerilim

200V

Contact Finish Post

Tin

Contact Shape

Square

Contact Length Post

0.118 3.00mm

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Insulation Height

0.335 8.51mm

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Seri

HIF3

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Contact Lengthmating

0.236 6.00mm

Shrouding

Shrouded - 4 Wall

Body Depth

0.547 inch

Insulation Color

Black

Orientation

Straight

Ul Flammability Code

94V-0

Durability

500 Cycles

Insulation Materials

Polybutylene Terephthalate (PBT)

Mixed Contacts

NO

Dielectric Withstanding Voltage

650VAC V

Contact Type

Male Pin

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Terminal

Solder
